1J To 4J Steel Ball Impact Testing Equipment For EV Connector Mechanical Strength Verification

1J To 4J Steel Ball Impact Testing Equipment For EV Connector Mechanical Strength Verification

Nama merek:	Sinuo
Nomor Model:	SN2202
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 Set Per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Metode pengangkat:

listrik

Dampak energi:

1J, 2J, 3J, 4J

Kisaran ketinggian jatuh:

0,4–1,5m, dapat disesuaikan

Standar Kepatuhan:

IEC 62196-1:2022 Klausul 26.2, Gambar 18, Tabel 13

Mode Tes:

Dampak jatuh vertikal / Ayunan dampak horizontal

Bola baja benturan:

Diameter 50.8mm, 0.535kg, dengan cincin

Kemasan rincian:

kayu lapis

Menyediakan kemampuan:

10 Set Per Bulan

Menyoroti:

1J to 4J steel ball impact tester

EV connector mechanical strength tester

steel ball impact testing equipment

Deskripsi Produk

1J To 4J Steel Ball Impact Testing Equipment For EV Connector Mechanical Strength Verification

Product Overview

The steel ball impact device complies with IEC 62196-1:2022 Clause 26.2, Figure 18, Table 13. It is designed to verify the mechanical strength of EV accessories, ensuring they possess sufficient robustness to withstand stresses encountered during installation and regular use.

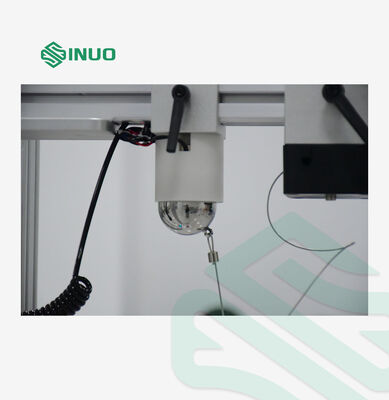

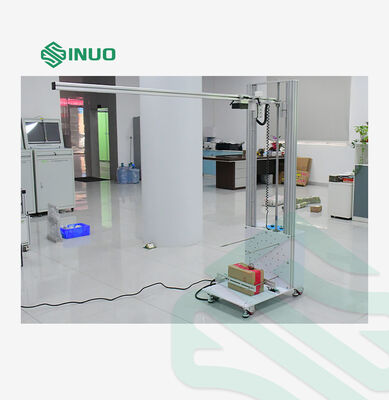

This instrument supports two test modes: vertical free-fall impact and swing horizontal impact. It features precise measurement, a reasonable structure, and easy operation, making it an ideal testing solution for laboratories, certification bodies, and manufacturers.

Technical Parameters

Drop Height Range	0.4–1.5m, adjustable

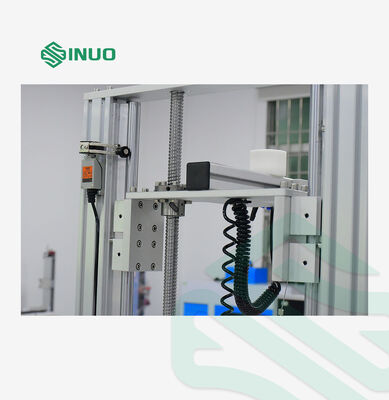

Lifting Method	Electric
Test Modes	Vertical drop impact / Swing horizontal impact

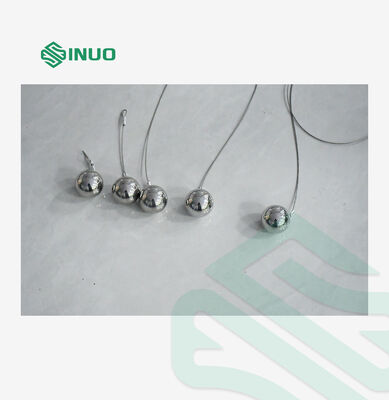

Impact Steel Balls for Vertical Drop Impact	50.8mm with ring, 0.535kg (1 piece); impact energy: 1J, 2J, 3J, 4J (adjustable via suspension wire length)
Impact Steel Balls for Swing Horizontal Impact	50.8mm with ring, 0.535kg (4 pieces); impact energy: 1J, 2J, 3J, 4J (fixed by suspension wire length)
Impact energy for ball impact test
Impact method

Why do EV connectors need steel ball impact testing?

EV connectors are exposed to accidental impacts during installation, transportation, and daily use. The ball impact test verifies that the connector housing and internal components have sufficient mechanical strength to withstand these shocks without cracking, breaking, or failing.

As required by IEC 62196-1:2022, the test uses a standard steel ball (0.535kg) to apply impact energies from 1J to 4J, matching the rated current of the connector. Our SN1206B Steel Ball Impact Device supports both vertical free-fall and swing horizontal impact modes to fully meet these standard requirements.
