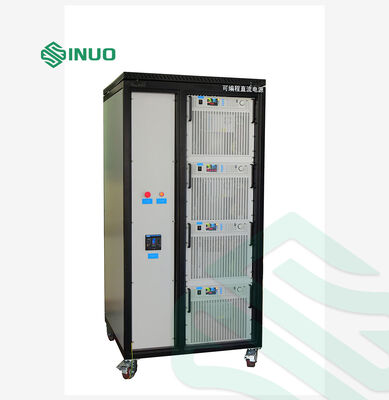

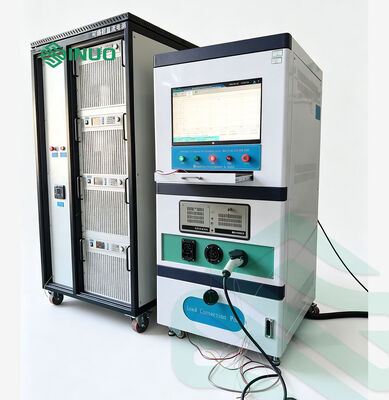

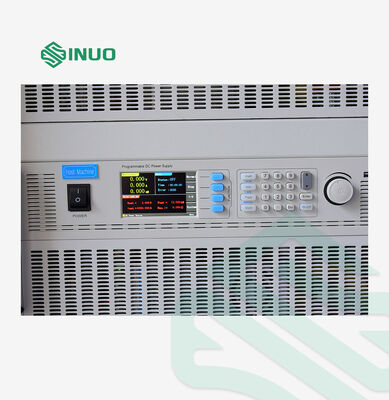

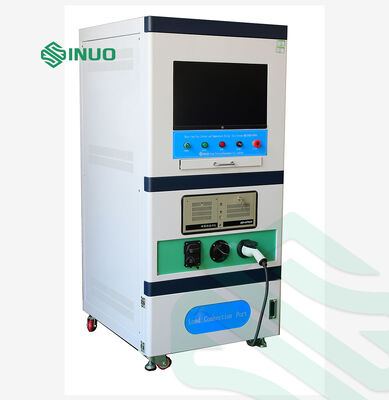

6500A PLC-Controlled Short-Time Current & Temperature Rise Test System For EV Plugs And Sockets

6500A PLC-Controlled Short-Time Current & Temperature Rise Test System For EV Plugs And Sockets

Nama merek:	Sinuo
Nomor Model:	SNQC1006B-6500A
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 Set Per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Kisaran pengaturan kenaikan suhu:

0–100°C

Berat:

Kira-kira. 400kg

Tegangan output maksimum:

DC kurang dari DC 15V

Ukuran:

Kira-kira 1000mm(L) × 1300mm (T) × 1800mm (T)

Catu Daya:

AC 220V ±10%, 50/60Hz, 50KVA

Rentang Pengukuran Suhu:

0–260°C, Akurasi: ±0,3% pembacaan + 1°C; Resolusi: 0,1°C

Mode Pengoperasian:

Mode berkelanjutan, mode Nyala/Mati, mode kontrol suhu otomatis

Kemasan rincian:

kayu lapis

Menyediakan kemampuan:

10 Set Per Bulan

Menyoroti:

6500A PLC-controlled EV connector tester

short-time current test system for EV plugs

temperature rise test equipment for EV sockets

Deskripsi Produk

6500A PLC-Controlled Short-Time Current & Temperature Rise Test System For EV Plugs And Sockets

Product Information

This test system is specially used for temperature rise testing of EV plugs and sockets under rated current, to evaluate the surface heating condition of electrical accessories when loaded with current, and verify whether the terminal temperature rise meets standard requirements. It is also applied to short-time high current withstand test for grounding contacts of EV charging connectors and accessories.

Compliance Standards

Conforms to IEC 62196-1 Ed.4 CDV 2020 Clause 12.3, Clause 24, Table 10, Clause 34.2, 34.4, 35.4, IEC 62916-2 and IEC 62916-3 standards.

Equipment Features

Adopts computer-controlled self-programmed test software for full-automatic test process and data judgment, easy to operate.
Automatically records and analyzes temperature rise data, and judges whether test results meet standard requirements.
Supports multiple working modes: continuous mode, on/off cycle mode, automatic temperature control mode.
Equipped with 16-channel high-precision temperature measurement, real-time curve display and data storage.
Provides voltage drop and resistance testing function, with overload & overcurrent protection for long-term stable operation.
Configured with touchscreen integrated industrial computer, supporting data export via USB in CSV/XLSX formats.

Technical Parameters

Output Workstation	1 DC output station
Maximum Output Voltage	DC less than DC 15V
Control Contact Power Supply	Current range AC (0–2) A
Operating Modes	Continuous mode, On/Off mode, Automatic temperature control mode
Temperature Rise Setting Range	0–100°C
Temperature Measurement Range	0–260°C, Accuracy: ±0.3% of reading + 1°C; Resolution: 0.1°C
Temperature Measurement Points	16 channels
Power Supply	AC 220V ±10%, 50/60Hz, 50KVA
Dimensions	Approx.1000mm(W) × 1300mm (D) × 1800mm (H)
Weight	Approx. 400kg
