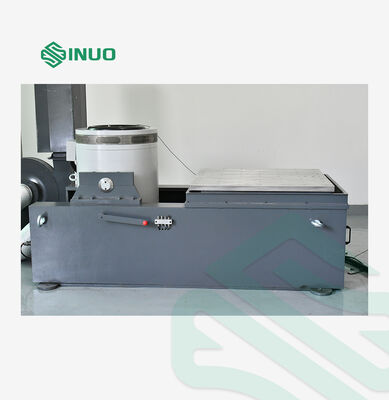

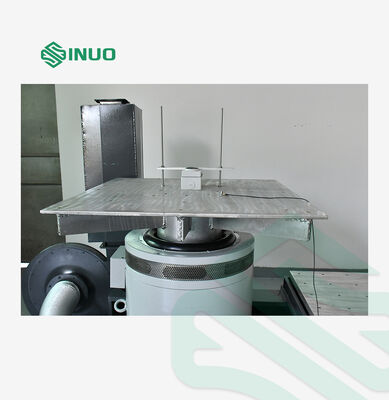

IEC62660 Compliant Vibration Test Machine for Battery with 300kg Sine Force and 100g Max Acceleration

IEC62660 Compliant Vibration Test Machine for Battery with 300kg Sine Force and 100g Max Acceleration

Nama merek:	Sinuo
Nomor Model:	SN553-EV203
MOQ:	1
harga:	dapat dinegosiasikan
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	1 Set Per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Kekuatan Keluar Maks (kg.f):

300

Maks. Perpindahan (mmp-p):

Maks. Akselerasi (g):

100

Maks. Kecepatan (cm/s):

120

Massa Angker (kg):

Diameter Angker (mm):

nomor 150

Kekuatan Keluar Maksimum:

300 kg.f

Kemasan rincian:

Kasus Kayu Lapis

Menyediakan kemampuan:

1 Set Per Bulan

Menyoroti:

IEC62660 compliant vibration test machine

EV battery vibration tester 300kg force

battery testing equipment 100g acceleration

Deskripsi Produk

IEC62660 Vibration Test Machine For Battery With 300kg Sine Force

Product Application

Vibration testing is the act of exciting or shocking a component or device to see how it would react in a real environment. The application range of vibration test is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.

Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards, such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM.

Equipment Configuration

Model	EV203
Vibration Generator	VG300/40
Frequency (Hz)	2-2500
Max Exiting Force (kg.f)	300
Max. Displacement (mmp-p)	38
Max. Acceleration (g)	100
Max. Velocity (cm/s)	120
Payload (kg)	120
Armature Mass (kg)	3
Armature Diameter (mm)	φ150
Cooling Method	Forced Air Cooling
Vibration Generator Weight (kg)	460
Vibration Generator Dimension LWH (MM)	750555670
Power Amplifier	Amp3k
Cooling Method	Forced Air Cooling
Power Amplifier Weight (kg)	250
Power Amplifier Dimension LWH (MM)	8005501250
Utility Requirements	3-phase AC380V ±10% 50Hz

Key Features

High Performance and Reliability

Closed-loop control using DSP processor ensures real-time system response and high efficiency. Independent PC from control loop guarantees reliability and precision. All input channels feature 24-bit resolution ADCs, low-noise hardware design, and built-in analog/digital anti-aliasing filters.
Easy Operation

Windows-based application software with rich auxiliary functions. Automated wizard and test report generation simplify repetitive tasks. Comprehensive test parameter settings with USB2.0 interface for seamless computer connectivity.
Powerful and Flexible

Versatile vibration control platform capable of handling multiple complex tasks. Modular design allows configuration of different hardware and software components to meet diverse testing and analysis requirements.
Test Safety

Small-scale signal control for system preview and noise level assessment. Multiple safety checks and interlock settings protect testers, test objects, and equipment. Built-in emergency termination key for immediate test shutdown during abnormalities.
Test Report Generation

One-click generation of Word or PDF format test reports. Comprehensive documentation including test control functions, setting parameters, target spectrum curves, and time/frequency domain curves. Supports direct printing, previewing, and online distribution.
