EV Connector Testing Equipment with 64 Parameter Channels for Airtightness Testing and Automatic Evaluation

EV Connector Testing Equipment with 64 Parameter Channels for Airtightness Testing and Automatic Evaluation

Nama merek:	Sinuo
Nomor Model:	SNQC1017A
MOQ:	1
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 Set Per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Rentang Pengukuran:

0 hingga ±2000 Pa

Ketahanan Tekanan:

1 Mpa

Suhu Operasional:

–5°C hingga 40°C

Suhu Penyimpanan:

–20°C hingga 70°C

Parameter Saluran:

64 saluran (1–64)

Pengaturan siklus pengujian:

0–999 detik

Kelembaban:

<80% RH, tanpa kondensasi

Berat:

Kira-kira. 40kg

Kemasan rincian:

KEMASAN EKSPOR

Menyediakan kemampuan:

10 Set Per Bulan

Menyoroti:

64 Parameter Channels EV Connector Testing Equipment

Airtightness Testing EV Charging Connector Tester

Automatic Evaluation Airtightness Tester

Deskripsi Produk

EV Connector Testing Equipment for Airtightness Testing and Automatic Evaluation

This high-precision EV Connector Testing Equipment provides comprehensive airtightness testing and automatic evaluation for electric vehicle charging components. Designed specifically for EV charging gun components and water pipes, it performs rigorous pressure-drop tests based on IPX7 standards to ensure product reliability and identify defective materials before assembly.

The system delivers stable pressure output, micro-leakage monitoring, automatic evaluation, and comprehensive data recording capabilities. It is ideally suited for EV charger manufacturers, charging gun assembly lines, and laboratory verification departments requiring precise quality control.

Technical Specifications

Technical Item	Specification
Display Resolution	0-4 decimal places adjustable
Measurement Range	0 to ±2000 Pa
Pressure Resistance	1 MPa
Accuracy	±0.1% FS
Overpressure Resistance	3* full-scale pressure
Test Pressure Units	kPa, kg/cm², PSI, mbar, bar, Torr, mmH₂O, mmHg
Leakage Units	Pa, Pa/s, mL/s, mL/min, L/min, Pa*m³/s
Parameter Channels	64 channels (1-64)
Test Cycle Setting	0-999 seconds
CPU	32-bit processor
Power Supply	AC 220V ±10%, 50 Hz
Required Air Source	Clean, dry air ≥ 600 kPa
Operating Temperature	-5°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	< 80% RH, non-condensing

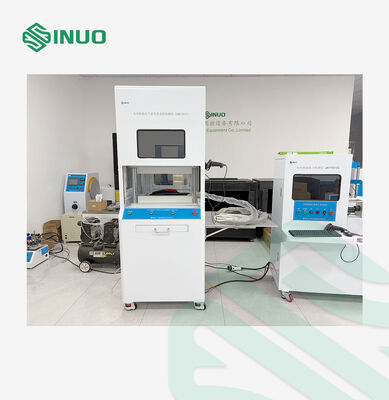

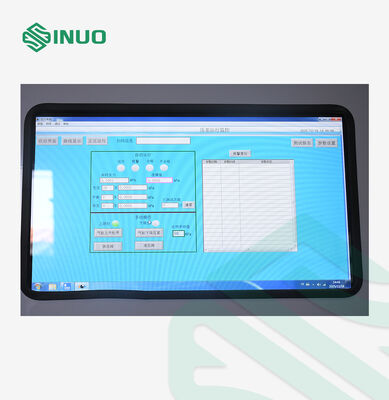

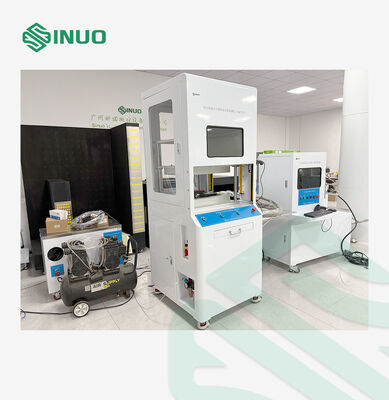

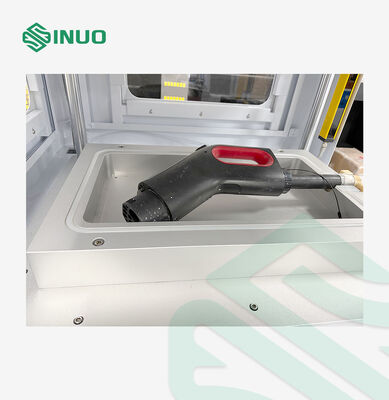

Product Images
