EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester

EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester

Nama merek:	Sinuo
Nomor Model:	SNQC1009-3
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	1 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Metode Pengendalian:

Kontrol PLC, operasi layar sentuh

Standar Terapan:

IEC 62196-1, klausul 7.11 dan lain-lain.

Modus berkendara:

Motor servo

Stasiun Uji:

3 stasiun

Sudut Bending:

0-360° dapat disesuaikan

Tingkat lentur:

0-60 kali/menit, dapat diatur

Beban berat:

20N, 25N, 50N, 75N, 100N

Waktu Membungkuk:

0~999999 dapat diatur sebelumnya

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

1 set/bulan

Deskripsi Produk

EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester

Complied Standards & Clauses

IEC 62196-1:2014 "Plug,socket-outlets,vehicle couplers and vehicle inlets–Conductive charging of electric vehicle-Part1:Charging of electric vehicles up to 250A a.c and 400A d.c" clause 7.11 and clause 7.15

IEC 60309-1:2012 "Plug,socket-outlets and couplers for industrial purposes–Part1:General requirement" clause 24.4

Equipment Overview

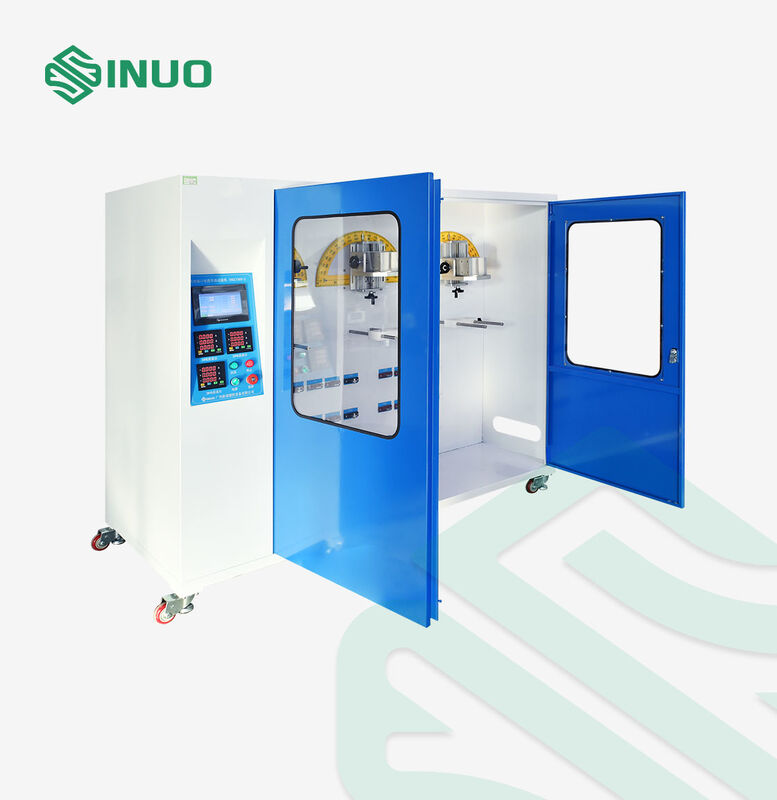

This Bending Mechanical Strength Test Equipment is designed for evaluating the durability and mechanical reliability of electric vehicle charging interfaces, industrial plugs, sockets, and couplers. It specifically tests the bending performance of the flexible power connection cable as required in the “mechanical strength” section of relevant standards.

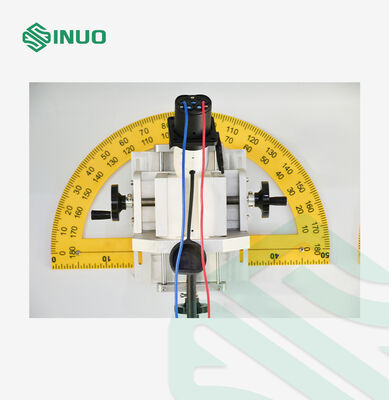

Driven by a high-precision servo motor, the system operates a turntable that swings the test specimen left and right, automatically stopping once the preset number of cycles is completed. The fixture adopts an aluminum mounting plate and is engineered to align the swing axis with the cable entry point of the sample, ensuring minimal lateral displacement and more accurate test results.

With a stable AC220V power supply and a durable structure, this machine provides reliable performance for laboratories, EV charging equipment manufacturers, and quality inspection agencies. Its compact footprint, robust build, and user-friendly operation make it an essential tool for mechanical endurance testing of power connection components.

Technical Parameters

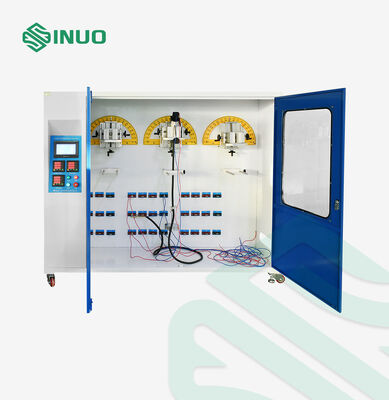

Test stations	3 stations
Test judgment	Judging by the signal given whether the current is conducting or not
Electrical control method	PLC intelligent integrated control, 7-inch man-machine touch interface operation
Drive mode	Servo motor drive
Specimen clamping method	Mechanical clamping, adjustable clamping point position
Load weight	20N, 25N, 50N, 75N, 100N
Bending times	0~999999 can be preset, the default is 20000 times
Bending angle	0-360° can be adjusted arbitrarily (default ±45°)
Load power	External, optional load cabinet with adjustable voltage between conductors of 0-250V and adjustable current of AC0-400A
Bending rate	0-60 times/min, can be preset

Details

EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester 0

EV Charging Connector Bending Test Charging Interface Mechanical Endurance Tester 1
