IEC 62619 Temperature Controlled External Short Circuit Tester 3000A

IEC 62619 Temperature Controlled External Short Circuit Tester 3000A

Nama merek:	Sinuo
Nomor Model:	SN551-1000L
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	1 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Arus beban maks.:

3000A

Waktu Respon DC:

≤5μs

Resistor bawaan:

≤5mΩ

Metode Pengendalian:

Plc dan layar sentuh

Ukuran ruang dalam:

L1000*1000Jam*D1000mm

Ukuran ruang eksternal:

L1200 X D1200 X T1800mm

Kisaran pengumpulan tegangan:

0～100V

Tingkat perolehan tegangan:

1 waktu/s

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

1 set/bulan

Deskripsi Produk

IEC 62619 Temperature Controlled External Short Circuit Tester 3000A

Complied Standards & Clauses

It is conforms to the standard of UN38.3 clause 4.5 Test T.5, UL 1642, UL 1973, IEC 62619:2017 clause 7.2.1, IEC62133-1:2017 clause 7.3.2 , IEC62133-2:2017 clause 7.3.1 and 7.3.2 , IEC62133:2014 clause 7.3.2,8.3.1, 8.3.2, IEC60086-4 clause 6.5.1, IEC60086-4 clause 6.5.8 6.5.9 , and so on .

Equipment overview

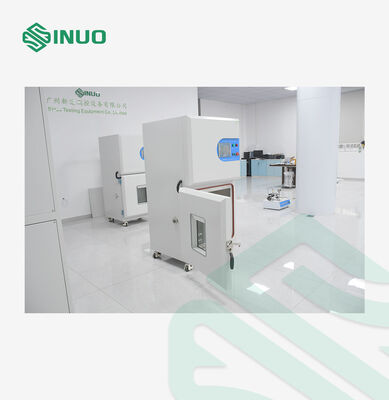

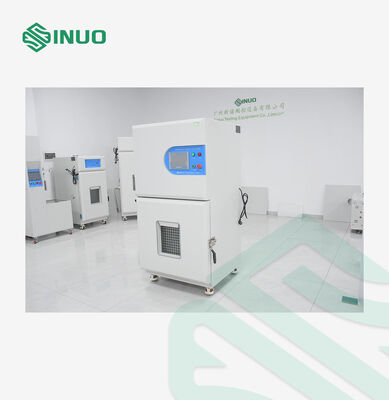

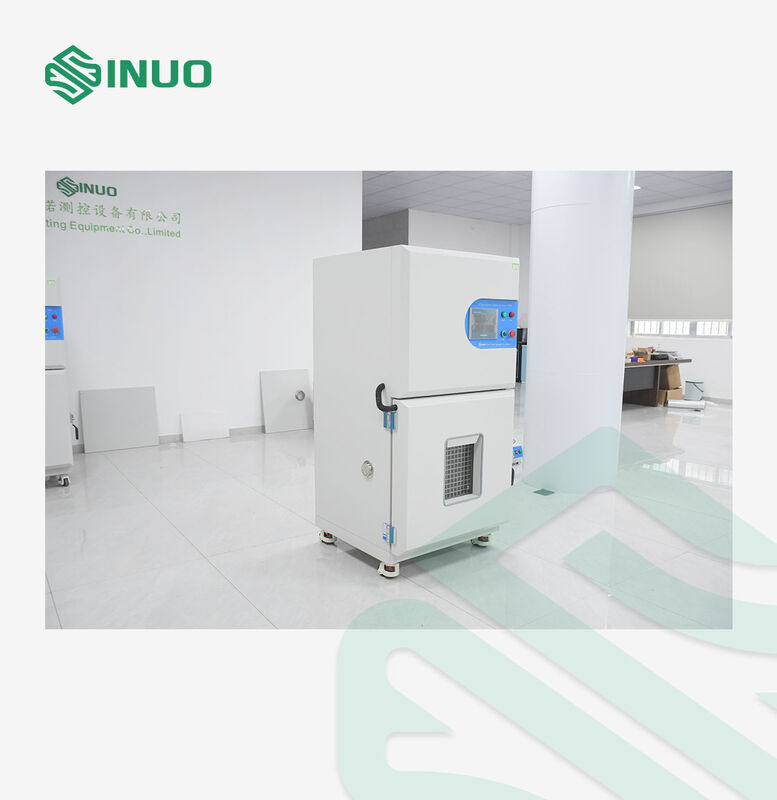

The Temperature Controlled Type External Short Circuit Tester is a professional battery safety testing system designed to evaluate the external short-circuit performance of cells, battery packs, and battery modules under controlled temperature conditions. It is widely used to assess thermal stability, current response, and safety behavior during short-circuit events.

The tester features a high-current external short-circuit system combined with precise temperature control, enabling accurate simulation of extreme abuse conditions. Intelligent monitoring and data acquisition ensure real-time measurement of voltage, current, and temperature, with automatic protection and reliable test evaluation.

The is an ideal solution for lithium-ion battery manufacturers, EV and energy storage system suppliers, certification laboratories, and R&D centers, helping ensure product safety, regulatory compliance, and market readiness.

Technical Parameters

Max. load current	3000A
DC response time	≤5μs
Built-in resistor	≤5mΩ (resistance can be made according to requirements)
Inner chamber size	W10001000HD1000mm
External chamber size	W1200 X D1200 X H1800mm (subject to final design)
Control method	PLC and Touch screen
Data export	USB

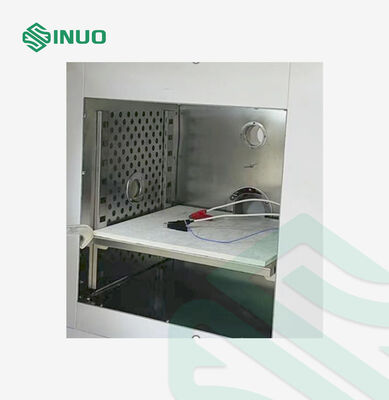

Inner box material	Stainless steel SUS201. Thickness 2.0mm
Sealing strip	Corrosion-resistant silicone.
Temperature control	Normal temperature RT+10℃~80℃ (can be preset) Temperature rise rate 3℃/min Temperature dial 1.0℃ Temperature uniformity: ±2℃
Test stop condition	1) The battery temperature drops to 20% lower than the peak; 2) Short circuit time
Battery surface temperature	Can monitor temperature changes during battery surface testing
Hall element collects current signal	Hall elements are used to collect the current generated when the short-circuit system is short-circuited, avoiding the generation of contact resistance, and the data transmission is stable and accurate;
Lead hole	There is a lead hole with a diameter of 50mm on the left side of the box for test wires to pass through.
