Electric Vehicle EV Charging Gun Plug-in/Plug-out Force Test Equipment

Electric Vehicle EV Charging Gun Plug-in/Plug-out Force Test Equipment

Nama merek:	Sinuo
Nomor Model:	SNQC1013C
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	1 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Panjang Bergerak:

300mm

Kapasitas Uji:

1 kN

Kecepatan Bergerak:

10.000 – 1000.000 mm/menit

Ukuran Meja Kerja:

460×245mm

Kekuatan Penyisipan/Penarikan Maksimum:

500 N

Sistem Penggerak:

Kontrol Gerakan

Tipe Mesin:

Tipe desktop

Berat Bersih:

Kira-kira. 60kg

Kemasan rincian:

Lainnya

Menyediakan kemampuan:

1 set/bulan

Deskripsi Produk

Electric Vehicle EV Charging Gun Plug-in/Plug-out Force Test Equipment

Equipment Overview

The Charging Gun Insertion & Withdrawal Force Tester is a high-precision tool specifically engineered for evaluating the plug-in and pull-out forces of EV charging connectors. Built for manufacturers who demand accuracy, stability, and efficiency, this system ensures every charging gun meets strict mechanical performance and safety requirements before entering the market.

Powered by a high-precision ball screw and advanced stepper motor drive, the tester delivers exceptionally smooth and consistent linear motion. With a Class-0.5 accuracy load cell and a fast 1000 Hz sampling rate, it captures even the slightest force variations with outstanding reliability.

Designed for real-world production environments, the system supports fully customized fixtures for different EV charging gun models. It also integrates barcode scanning for automated test initiation and result tracking—significantly improving testing efficiency and aiding in complete traceability.

Whether used for incoming inspection, R&D verification, or end-of-line quality control, this tester offers the precision, stability, and automation needed for large-scale EV charging connector manufacturing.

Technical Parameters

Item	Specification
Test Capacity	1 kN
Compliance	JIS B 7721 Tensile/Compression Tester – Class 0.5
Moving Length	300 mm
Moving Speed	10.000 – 1000.000 mm/min
Motion Control	High-precision ball screw + high-precision stepper motor
Limit	500 N
Fixture Base	460 × 245 mm
Structure	Desktop type
Net Weight	Approx. 60 kg
Accuracy Level	0.5 Class (measurement error ≤ 0.5%)
Load Sampling Frequency	1000 times/sec
Load Cell Input Channels	1 channel
Display Units	mN, N, kN (kgf, gf, lb(in) optional for overseas models)
Protection Functions	Upper/lower limit stops, overload protection, STOP button, emergency stop, software-defined limit protection
Rated Power	300 VA
Power Supply	Single-phase AC100V–120V or AC200V–240V

Details

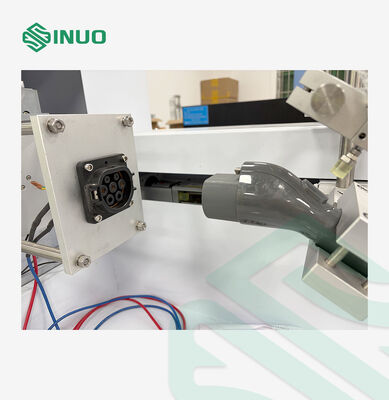

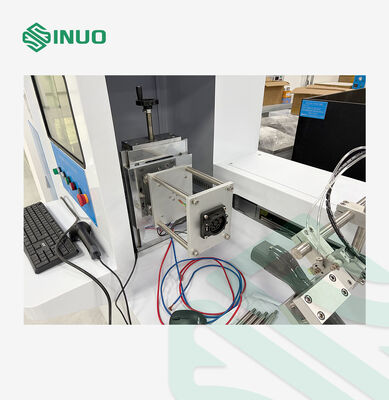

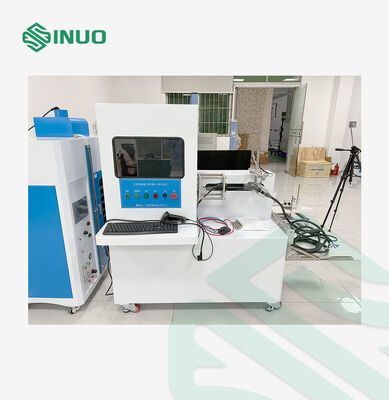

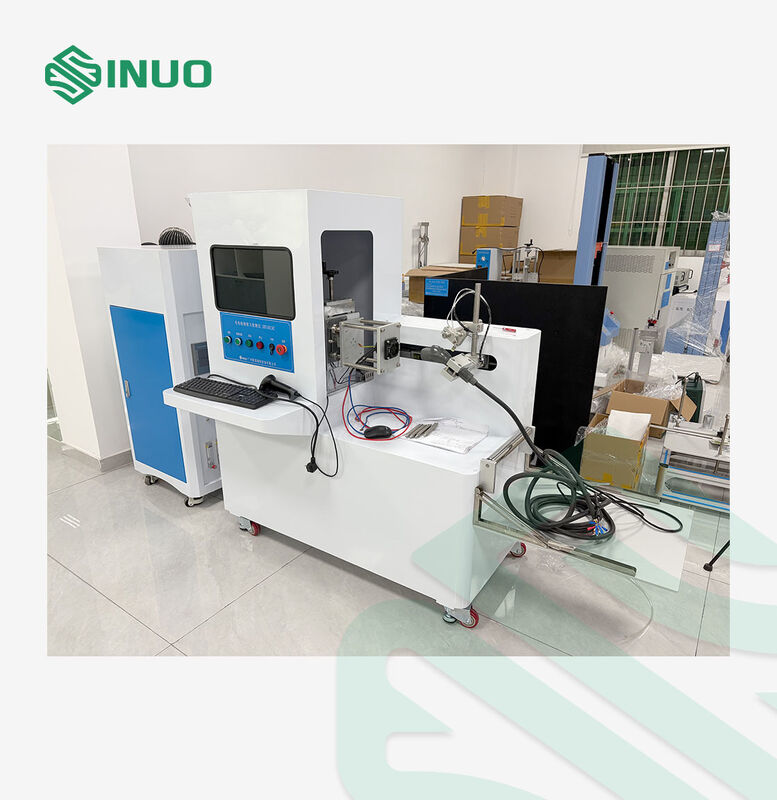

Electric Vehicle EV Charging Gun Plug-in/Plug-out Force Test Equipment 0
