EV Charging Connector Insertion & Withdrawal Force Tester Test Machine

EV Charging Connector Insertion & Withdrawal Force Tester Test Machine

Nama merek:	Sinuo
Nomor Model:	SNQC1013C
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	1 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Kapasitas Uji:

1 kN

Panjang Bergerak:

300mm

Kecepatan Bergerak:

10.000 – 1000.000 mm/menit

Ukuran Meja Kerja:

460×245mm

Kekuatan Penyisipan/Penarikan Maksimum:

500 N

Sistem Penggerak:

Kontrol Gerakan

Tipe Mesin:

Tipe desktop

Berat Bersih:

Kira-kira. 60kg

Kemasan rincian:

Lainnya

Menyediakan kemampuan:

1 set/bulan

Deskripsi Produk

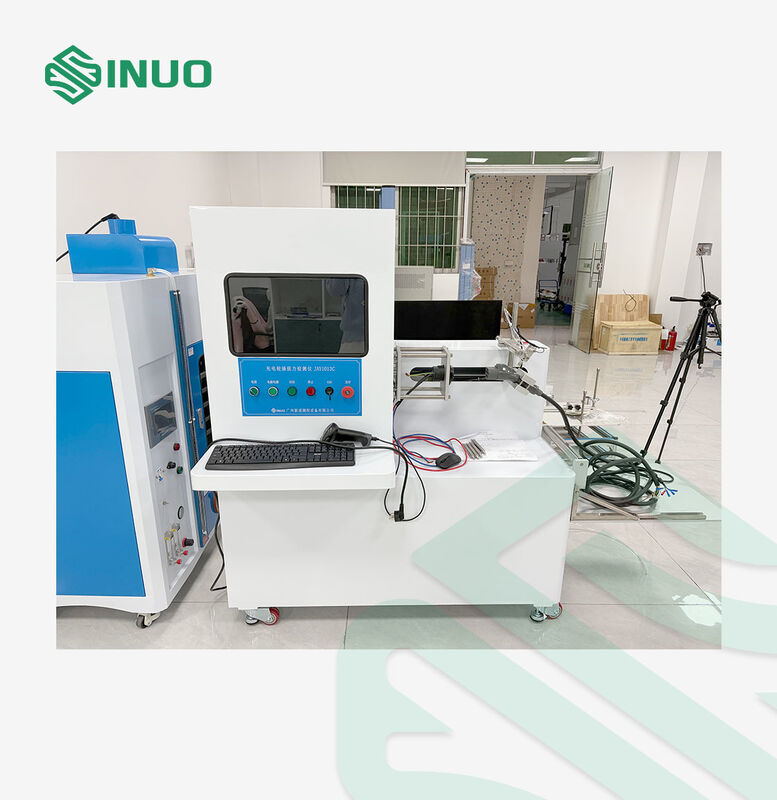

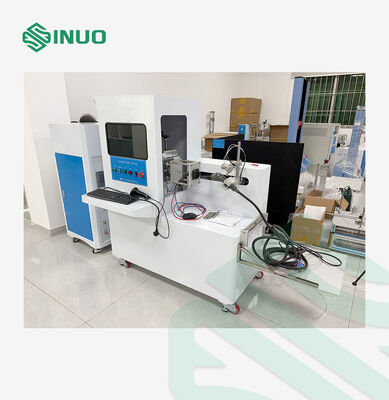

EV Charging Connector Insertion & Withdrawal Force Tester Test Machine

Equipment Overview

The Charging Gun Insertion & Withdrawal Force Tester is designed for precision testing of insertion and pull-out forces of EV charging connectors. It is widely used for quality inspection of incoming materials in EV charging gun manufacturing, helping prevent functional defects and ensuring compliance with required technical specifications.

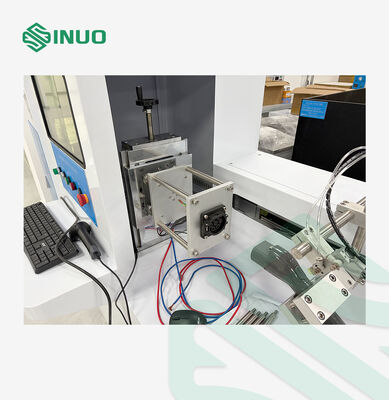

The system adopts a high-precision ball screw and stepper motor drive, ensuring stable linear motion and accurate force control. With a 0.5-class force accuracy level and up to 1000 Hz sampling rate, the tester provides highly reliable test results.

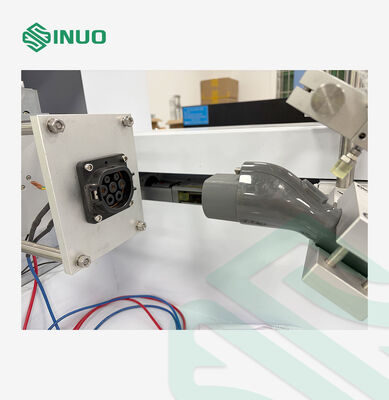

It supports customized fixtures according to different charging gun models and integrates barcode scanning for automatic test data recording, making it ideal for mass production and full inspection in manufacturing plants.

Technical Parameters

1. Mechanical & Performance Parameters

Category	Item	Specification
Load Capacity	Test Capacity	1 kN
Reference Standard	Compliance	JIS B 7721 Tensile/Compression Tester – Class 0.5
Max. Stroke	Moving Length	300 mm
Speed Range	Moving Speed	10.000 – 1000.000 mm/min
Drive System	Motion Control	High-precision ball screw + high-precision stepper motor
Maximum Insertion/Withdrawal Force	Limit	500 N
Worktable Size	Fixture Base	460 × 245 mm
Machine Type	Structure	Desktop type
Weight	Net Weight	Approx. 60 kg

2. Sensor & Measurement Parameters

Category	Item	Specification
Load Cell	Accuracy Level	0.5 Class (measurement error ≤ 0.5%)
Sampling Rate	Load Sampling Frequency	1000 times/sec
Sensor Channels	Load Cell Input Channels	1 channel
Unit Options	Display Units	mN, N, kN (kgf, gf, lb(in) optional for overseas models)

3. Safety & Protection

Item	Specification
Protection Functions	Upper/lower limit stops, overload protection, STOP button, emergency stop, software-defined limit protection

4. Power Requirements

Item	Specification
Rated Power	300 VA
Power Supply	Single-phase AC100V–120V or AC200V–240V

Details

EV Charging Connector Insertion & Withdrawal Force Tester Test Machine 0
