EV Connector Cable Static Tensile & Compression Testing Equipment 5000N

EV Connector Cable Static Tensile & Compression Testing Equipment 5000N

Nama merek:	Sinuo
Nomor Model:	Snf02
MOQ:	1
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

Calibration Certificate (Cost Additional)

Mode drive:

Digerakkan motor

Jenis sampel:

Pistol Pengisi Daya EV

Berat:

220 kg

Dimensi (W × D × H):

1200×600×1800mm

Kecepatan tes:

1–300 mm/menit

Pukulan tinggi:

0–600 mm

Metode penjepitan:

Penjepitan mekanis

Rentang gaya:

0–5000 N

Kemasan rincian:

Ekspor Packing

Menyediakan kemampuan:

10 set per bulan

Deskripsi Produk

EV Connector Cable Static Tensile & Compression Testing Equipment 5000N

Complied Standards & Clauses

Conforms to IEC 62196-1:2022, etc.

Product Overview

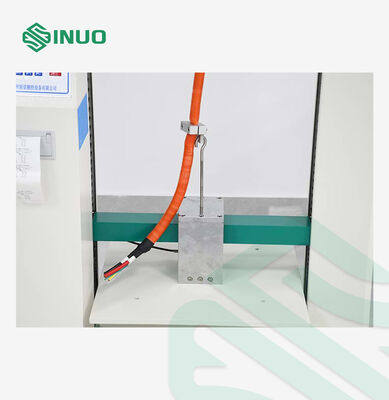

Ensure the mechanical strength and reliability of your EV charging gun cables with our Static Tension and Compression Test Device. Designed for precision and durability, this advanced tester performs both tensile and compression tests to validate that cable clamping structures can withstand the mechanical forces encountered in real-world use.

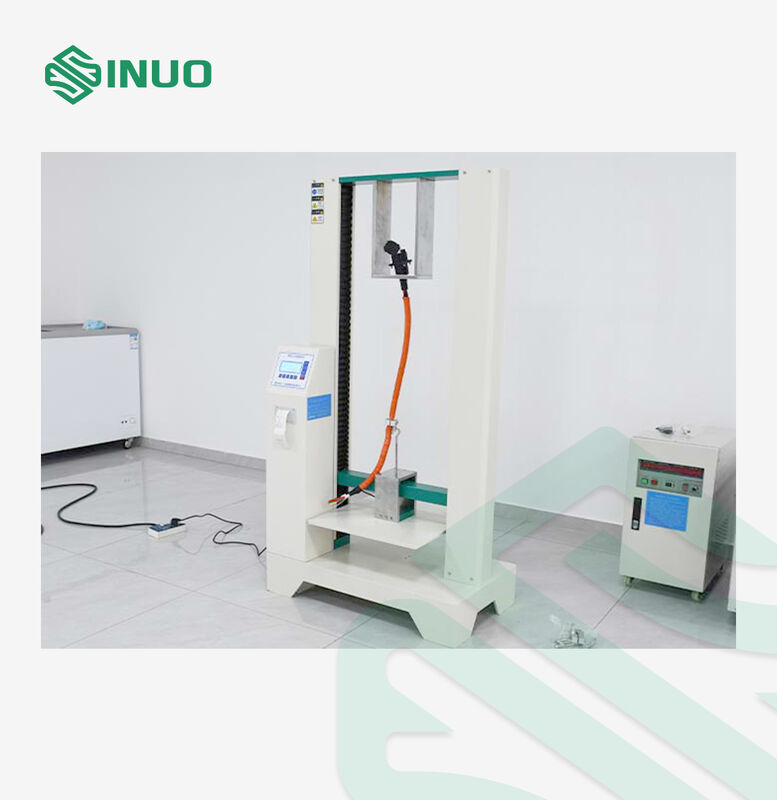

Equipped with a motor-driven dual-column frame and an intuitive touch screen interface, the tester allows accurate control of force, speed, and duration, while providing real-time force–time curve feedback for highly precise results.

Ideal for R&D departments, EV connector manufacturers, and quality control laboratories, this device delivers customizable, repeatable, and reliable mechanical testing, helping engineers optimize cable designs, enhance safety, and ensure product longevity.

Technical Parameters

Parameter	Specification
Model	SNF02
Inner Frame Dimensions (W×D×H)	600 × 600 × 1000 mm
Dimensions (W×D×H)	Approx. 1200 × 600 × 1800 mm
Weight	Approx. 220 kg
Drive Mode	Motor-driven
Workstation	Single station
Control Method	Touch screen operation
Height Stroke	0–600 mm
Clamping Method	Mechanical clamping
Fixtures	2 pcs tensile fixtures, 1 pc 500×500 mm compression plate
Test Functions	Tensile test, Compression test for EV charging connectors
Working Temperature	0–40°C
Force Holding Time	1–999 s (countdown starts when set force is reached)
Force Range	0–5000 N (sensor monitored, presettable)
Force Units	N, kg, lb (switchable)
Accuracy	Class 0.25
Resolution	0.1 N
Curve Display	Force-time curve
Test Speed	1–300 mm/min (adjustable)
Power Supply	AC220V ±10%, 50–60Hz
Humidity Range	30%–90% RH
Sample Type	EV Charging Connector
