Comprehensive Tester for Electronic Locking Device of EV Charging Gun

Comprehensive Tester for Electronic Locking Device of EV Charging Gun

Nama merek:	Sinuo
Nomor Model:	SNQC1023A
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	1 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

Calibration Certificate (Cost Additional)

Membuka Rentang Kekuatan:

0–100 N

Jangkauan kekuatan tarik:

0–50 N

Modus Operasi:

Manual / Dapat Diprogram

Stasiun Kerja:

Stasiun tunggal

Dimensi (Unit Kontrol):

500×500×1400mm

Dimensi (Unit Mekanis):

1000×900×1400mm

Muat Rentang Saat Ini:

1–200 mA dapat disesuaikan

Pengaturan Waktu Interval:

0–200 detik (resolusi 1 detik)

Kemasan rincian:

Lainnya

Menyediakan kemampuan:

1 set/bulan

Deskripsi Produk

Comprehensive Tester for Electronic Locking Device of EV Charging Gun

Complied Standards & Clauses

Conforms to IEC62196-1:2022, etc.

Equipment Overview

The EV Charging Gun Electronic Locking Device Comprehensive Tester is specially designed for full-range performance and durability evaluation of electronic and mechanical lock mechanisms used in EV AC/DC charging connectors.

This advanced system simulates real operating conditions—including mechanical stress, electrical load, thermal influence, emergency release and extreme cycling—ensuring the safety, reliability, and compliance of charging interfaces according to GB/T, IEC 62196-1, and other global standards.

Featuring Mitsubishi PLC intelligent control, high-precision force sensors, and flexible universal fixtures for multiple connector types (GB, EU, US), the tester offers stable, accurate, and automated testing for R&D centers, certification laboratories, and EV charging equipment manufacturers.

Key Features

Full compliance with GB/T 20234.1-2023, IEC 62196-1:2022

Simulates normal operation, emergency unlocking, extreme condition cycle test

High-accuracy axial push/pull force application (0–50N / ≤±0.5%)

Programmable unlocking force up to 100N

Real-time monitoring of lock/unlock feedback signals

Up to 99999 cycles for endurance testing

Independent mechanical module suitable for climate chamber testing

Mitsubishi PLC + 7-inch HMI for stable, intelligent operation

Universal fixtures compatible with global AC/DC connectors

Technical Parameters

Test Project	a) Normal operation (lifespan) test of the electronic locking device b) Manual emergency unlocking test of the electronic locking device c) Extreme condition cycle life test of the electronic locking device
Workstation	Single workstation
Electrical control method	Mitsubishi PLC intelligent integrated control, 7-inch color human-machine interface operation
Operating mode	Manual or programmable operation
Clamps	a) Meets the requirements for independent electronic locking devices or general-purpose fixtures; b) Meets the requirements for universal AC/DC charging interfaces according to national, American, and European standards.
Test Function	Equipped with top-bar electronic lock testing function
Electronic locking device unlocking	It features manual unlocking of the electronic locking device and adopts an electronically controlled automatic operation mode. Programming is implemented to meet the normal operation (lifespan) requirements of the electronic locking device. The unlocking force requirement is (0~100) N, the indication error is ≤±0.5% F.S., and the resolution is ≤0.1 N.
Electronic locking device applies force	Equipped with a force-applying device for the locking lever mechanism of the electronic locking device, the force-applying device can clamp the end of the locking lever and apply axial thrust or tension. The force measurement range is required to meet (0~50) N, the indication error ≤ ±0.5% F.S., the resolution ≤ 0.1 N, and the force application rate can be adjusted to maintain a constant force value. The force-applying device can measure the displacement of the stressed part and the position of the locking lever, and the displacement measurement range is required to meet (0~50) mm.
Polarity conversion	The PLC program automatically switches, and switches 1s after detecting the electronic lock status feedback.
DC power supply	(30V/10A) DC, voltage accuracy better than 0.5 class, resolution ≤0.1V
Interval time	Interval time: can be set arbitrarily within the range of (0~200) s, resolution ≤1s, 1-200mA adjustable load current to cooperate with the operation;
Function	It is equipped with a 1-200mA adjustable load current and a monitoring device that provides feedback on the electronic lock unlocking/locking signal, recording the signal on/off status and number of times.
Fault diagnosis	Built-in signal feedback detection, automatic shutdown in case of abnormality
Number of trials	Arbitrarily set within the range of (0~99999) times.
Security Protection	Grounding protection, short circuit protection, overload protection

Details

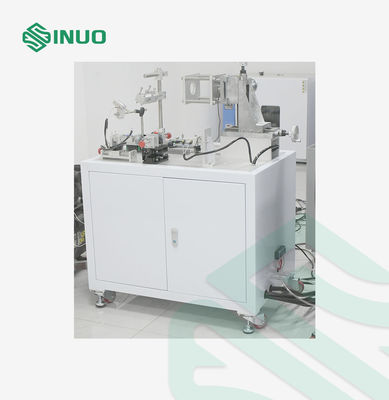

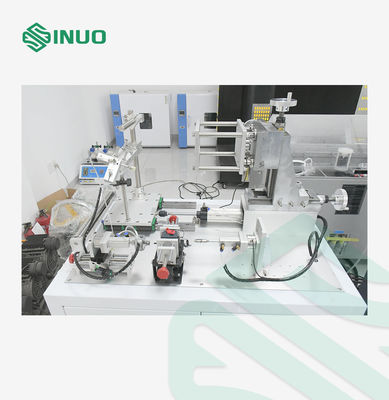

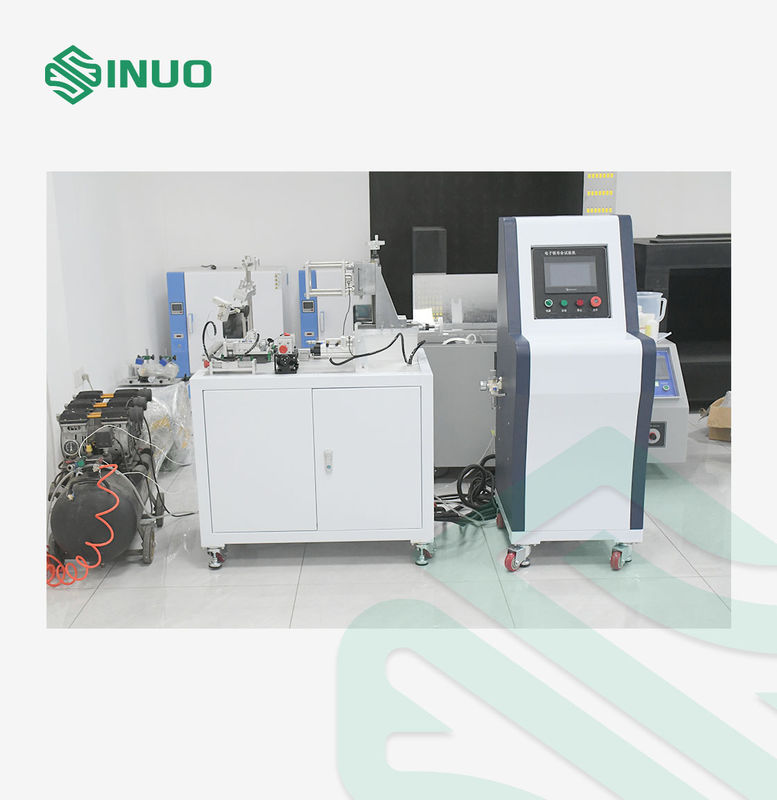

Comprehensive Tester for Electronic Locking Device of EV Charging Gun 0
