SAE J2464 Lithium Battery Crush and Nail Penetration Test Chamber

Nama merek:	Sinuo
Nomor Model:	SN554B-30T
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	1 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Calibration Certificate (Cost Additional)

Ukuran baterai:

300*300*250mm

Berat baterai:

18kg-30kg

Ruang uji:

1000×1000×1000mm(L*D*T)

Dimensi peralatan:

1200×1500×1850mm

Hancurkan kecepatan akupunktur:

0,1-83 mm/dtk (dapat disesuaikan)

Struktur peralatan:

Struktur tipe kotak

Rentang tekanan:

1～300kN

Pemindahan:

0～300mm

Kemasan rincian:

Lainnya

Menyediakan kemampuan:

1 set/bulan

Deskripsi Produk

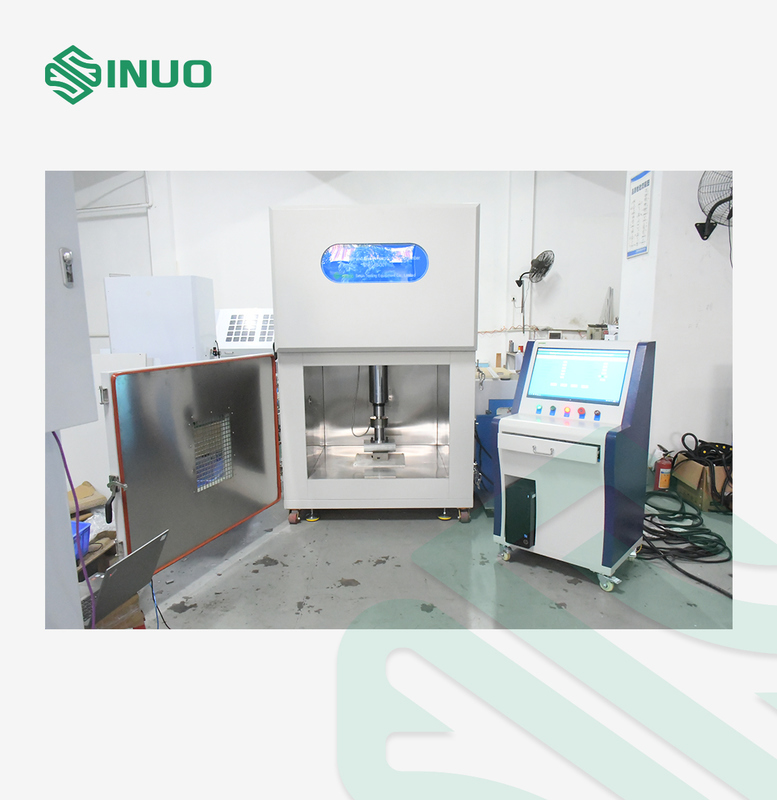

SAE J2464 Lithium Battery Crush and Nail Penetration Test Chamber

Complied Standards & Clauses

Conforms to SAE J2464 Standard (Clause 4.3.3.1: Penetration Test; Clause 4.3.6.1: Crush Test), AIS 038 crush test in page no. 79 of 106 cl.no. 3.2, Nail penetration test in page no. 101 of 106 cl.no. 3.3.2 (a), IEC62133-2012, IS0 12405-4:2018, etc.

Equipment Overview

The Battery Crush and Nail Penetration Test Chamber is specially designed to evaluate the safety performance of lithium-ion and EV batteries under extreme mechanical conditions. Conforming to international standards such as SAE J2464, AIS 038, IEC 62133, and ISO 12405-4, this advanced testing system accurately simulates real-world crushing and puncture scenarios to assess battery durability, short-circuit behavior, and fire resistance.

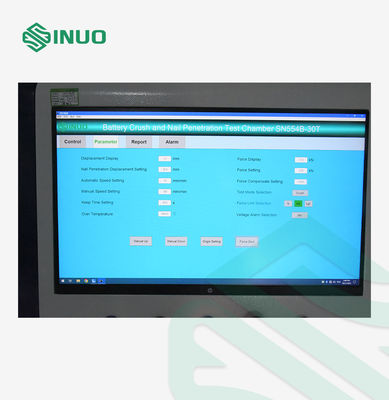

Equipped with a high-precision control motherboard and intelligent data acquisition software, the chamber simultaneously records force, displacement, voltage, and temperature in real time. The test automatically stops once preset voltage, deformation, or pressure conditions are met, ensuring safe and reliable operation.

Designed with a robust safety structure and user-friendly interface, the system supports customizable test modes, automatic data recording, and report generation. It is an ideal choice for battery manufacturers, EV R&D centers, and testing laboratories to ensure compliance and enhance product safety.

Technical Parameters

User battery cell size	Maximum size (length x width x height): 300300250mm, weight: 18kg-30kg
Test space	1000×1000×1000mm (width, depth and height)
Dimensions	1200×1500×1850mm (width, depth and height, subject to actual design)
Weight (approx.)	800kg
Power Supply	380V
Power	25KW
Pressure holding time	0~99min59s, can be set
Drive method	Servo Motor +Electric cylinder drive
Crush acupuncture speed	0.1-83mm/s (adjustable)
Pressure accuracy	±1%FS
Pressure resolution	0.01kN
Pressure range	1～300kN, sensor maximum range 306kN
Displacement	0～300mm
Speed accuracy	0.1mm/s~5mm/s, accuracy ±0.05mm/s; 5mm/s~83mm/s, accuracy ±0.1mm/s
Speed resolution	≤0.01mm/s
Displacement accuracy	±0.1mm
Unit conversion	Kgf, N, kN
Steel needle	1) Specifications: Φ3mm, Φ4mm, Φ5mm, Φ6mm, Φ8mm, Φ20mm 2) Length: L=200mm 3) Material: Heat Treatment of Steel 4) Angle: 45°~60° 5) Quantity: 2 each

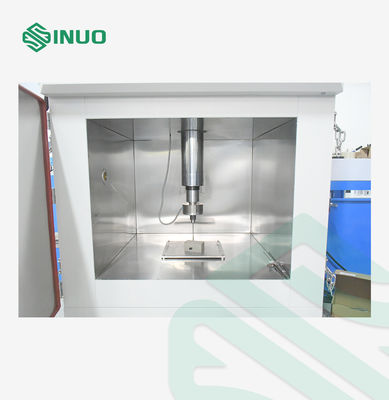

Crush needle direction	Crush and acupuncture from top to bottom
Crush head	1, R75250mm semi-cylinder, easy to disassemble. 2, 2R75250mm semi-cylinder, easy to disassemble.
Flat crush head	With a flat crush head 1. Semi-cylinder crush head: radius is 100mm, i.e., R100mm * 250mm. (Customize according to customer’s requirement) 2. Flat crush head.
Force display	Computer display
Sensor resolution	1／10000
Sampling line length	2m
Acquisition frequency	≥50Hz
Cutoff condition	Pressure, voltage and deformation can be set separately and monitored simultaneously. The test can be stopped as long as any one or more variables reach the set value.
Test hole	A 50mm hole is opened on each side
Control method	Remote computer control, distance ≥10m
Equipment structure	Box-type structure
Smoke exhaust port	Smoke exhaust port is 100mm in diameter

Details

SAE J2464 Lithium Battery Crush and Nail Penetration Test Chamber 2
