Acceleration Shock Test System Hydraulic Lift Mechanical Shock Test Bench

Acceleration Shock Test System Hydraulic Lift Mechanical Shock Test Bench

Nama merek:	Sinuo
Nomor Model:	SN558-HSKT300
MOQ:	1
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	10 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Calibration Certificate (Cost Additional)

Platform Kerja:

800×800mm

Beban maksimum:

300kg

Akselerasi puncak setengah-bersin:

15—350G

Durasi pulsa setengah sinus:

2,5—30 mdtk

Metode pengangkat:

angkat hidrolik

Frekuensi pengambilan sampel:

192KHz

Ukuran perangkat:

1600× 1300× 2250mm

Jumlah peralatan:

2000 kg

Kemasan rincian:

Ekspor Packing

Menyediakan kemampuan:

10 set per bulan

Deskripsi Produk

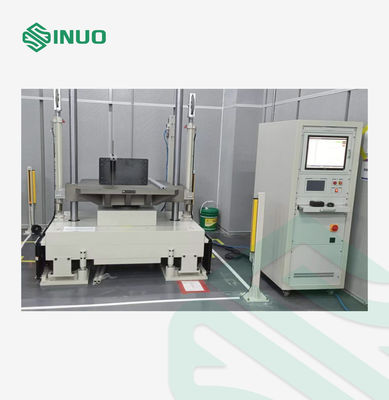

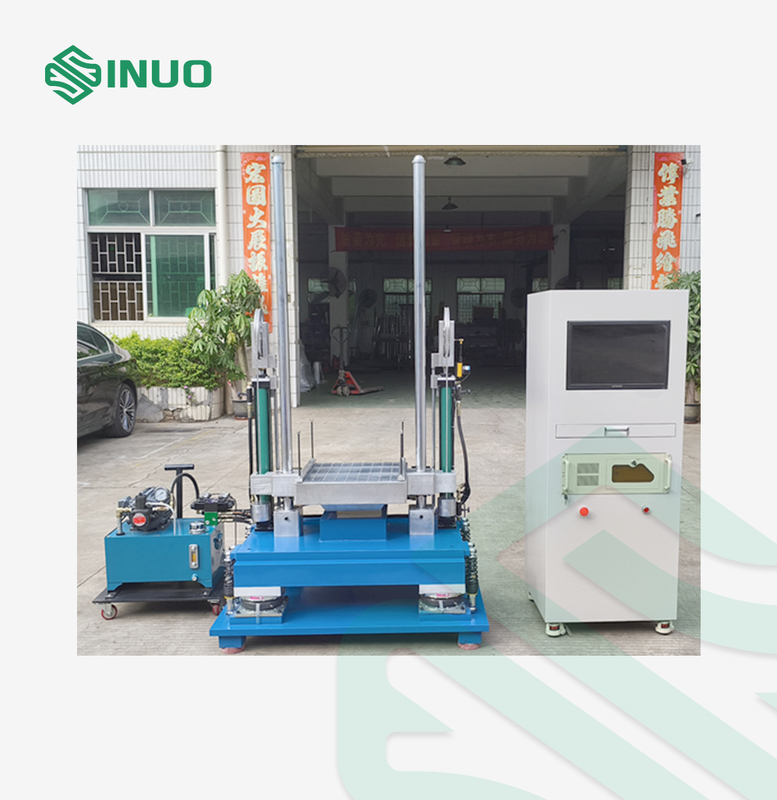

Acceleration Shock Test System Hydraulic Lift Mechanical Shock Test Bench

Complied Standards & Clauses

Conforms to MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, and MIL-STD-883E, etc.

Product Overview

This device is primarily suitable for shock testing applications in electronics, aerospace, shipbuilding, military, automotive, and transportation. By selecting different waveform generators, it can perform shock tests using half-sine, post-peak sawtooth, or square waves.

Installation and Environmental Requirements

Ambient Temperature: 5℃ ~ +28℃ (average temperature within 24 hours ≤ 28℃)
Relative Humidity: ≤ 85% RH

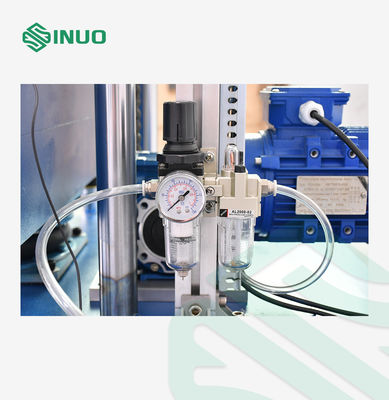

Air Supply: 0.5 – 0.8 MPa
Power Supply: Three-phase, five-wire system
Voltage Input: AC 380V
Frequency Fluctuation Range: (50 ± 0.5) Hz
Grounding Resistance: PGND cable resistance < 4 Ω
Installation Requirement:
The user shall provide an air or power switch of appropriate capacity at the installation site. This switch must be dedicated exclusively to this equipment.

Technical Parameters

Working platform	800 × 800 mm
Working platform Material	High-strength imported high-quality aluminum alloy
Maximum load	300kg
Half-sine peak acceleration	15—350 G
Half-sine pulse duration	2.5—30ms
Lifting method	Hydraulic lift
Equipment size	1600× 1300× 2250mm
Equipment weight	2000 kg
Measuring System
Input channel	2 channels
Sampling frequency	192KHz
Input form	Voltage, Electric Charge
Voltage range	-10v--+10v
Coupling method	AC, DC, ICP
Shock waveform	Half Sine
Communication interface	USB2.0
Support standard	National standard, national military standard, U.S. military standard, user-defined standard
Operating system	Microsoft Windows7/10
System Acceleration Sensor
Brand	YMC
Output method	Charge type
Sensitivity	3.93pC/g
Frequency range	0.5—12KHz
Acceleration range	±2500G
Working environment	-40~+160℃
Other Instructions
Power supply	380V±10％
