EV Plug Temperature Rise Test System EV Connector High Current Test System

EV Plug Temperature Rise Test System EV Connector High Current Test System

Nama merek:	Sinuo
Nomor Model:	SNQC1006B-6500A
MOQ:	1
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	10 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Calibration Certificate (Cost Additional)

Ukuran:

1000mm (L) × 1300mm (T) × 1800mm (Tinggi)

Berat:

400kg

Frekuensi pengambilan sampel:

100ms hingga 1800an

Titik pengukuran suhu:

16 saluran

Kisaran pengukuran suhu:

0–260°C

Kisaran pengaturan kenaikan suhu:

0–100°C

Output arus uji yang dapat disesuaikan secara konstan:

DC 200–6500A

Tegangan output maksimum:

DC kurang dari DC 15V

Kemasan rincian:

Ekspor Packing

Menyediakan kemampuan:

10 set per bulan

Menyoroti:

EV plug temperature test system

EV connector high current tester

EV connector testing equipment with warranty

Deskripsi Produk

IEC 62916-3 EV Plug and Socket Temperature Rising Test System 6500A

Complied Standards & Clauses

This advanced test system is designed in compliance with IEC 62196-1 Ed.4 CDV 2020 (clause 12.3, clause 24, table 10, clause 34.2, 34.4, and 35.4), IEC 62916-2, IEC 62916-3, and other relevant standards.

Product Overview

This EV Plug and Socket Temperature Rise Test System is specially designed to evaluate the thermal performance and safety of electric vehicle charging interfaces. It fully complies with IEC 62196-1 Ed.4 CDV 2020 (Clause 12.3, 24, Table 10, 34.2, 34.4, 35.4), as well as IEC 62916-2 and IEC 62916-3 standards.

The system accurately measures the temperature rise of EV plugs, sockets, and terminals under rated current conditions, ensuring that all components meet international safety requirements. It also supports short-time high current withstand testing for grounding contacts, helping manufacturers verify product reliability and performance under extreme conditions.

Featuring precise temperature monitoring, stable current output, and intelligent data recording, this test system provides a reliable solution for EV connector thermal evaluation, quality control, and certification testing.

The system uses self-programmed software controlled by a computer. All standard test procedures and data judgments are controlled by the system, making operation easy. It is used to assess the surface heating and electrode temperature rise of charging interfaces and electrical accessories when connected to load current, and to check if the temperature rise meets the standard requirements.

Technical Parameters

Item	Description / Specification
1. Output Workstation	1 DC output station
Maximum Output Voltage	DC < 15V
Constant Adjustable Test Current Output	DC 200–6500A
Current Display Accuracy	±(0.25% of reading + 0.25% of range), resolution 1A
Voltage Display Accuracy	±(0.25% of reading + 0.25% of range), resolution 0.01V
Test Current Stability	±(1% of set value + 0.5A), response time ≈ 1s
2. Control Contact Power Supply	Current range: AC (0–2)A
3. Operating Modes	Continuous Mode, On/Off Mode, Automatic Temperature Control Mode
Continuous Mode Test Time	0.01–99.99 hours
On/Off Mode Power On/Off Time	0.01–99.99 hours
On/Off Count	1–9999 times, auto-stop after completion
Current Setting	Programmable control (configurable as per IEC 62196)
Automatic Temperature Control Mode	Automatically finds current for set temperature rise
Temperature Rise Setting Range	0–100°C
Stability Accuracy	±0.5°C
4. Temperature Rise Testing (Built-in Temperature Inspection Device)
Temperature Measurement Range	0–260°C
Measurement Accuracy	±0.3% of reading + 1°C
Resolution	0.1°C
Temperature Measurement Points	16 channels (including 1 ambient temperature point)
Supported Thermocouple Types	J, K, T, E, S, N, B, R
Thermocouple Used	USA Ω Co. K-type, 30AWG, 2m length, total 20 pcs
Temperature Probes	Support live testing without instrument damage
Scanning Speed & Recording Interval	0.1–1800 seconds (all channels)
Temperature Data Recording	Automatic computer recording with software configuration
Ambient Temperature Compensation	Software automatically subtracts ambient temperature
5. Voltage Drop & Resistance Testing	Equipped with mV meter for voltage drop and resistance calculation
6. Touchscreen Integrated Industrial Control Computer
CPU	Pentium 4 / 1.8G or higher
Memory	4GB
Storage	64GB SSD
Display	15-inch LCD monitor
Operating System	Windows XP (English version)
Software	OFFICE software included
Power Setting Functions	Programmable (≥10 current segments, auto adjustment & reset)
Operating Modes	Continuous, On/Off, Automatic temperature control
Data Display	Real-time temperature, current, and time curve display
Sampling Frequency / Data Recording Interval	Adjustable from 100ms–1800s
Data Storage	≥8GB storage, automatic/manual saving
Data Export	USB export (CSV, XLSX, etc.)
7. Power Supply	AC 220V ±10%, 50/60Hz, 50KVA
8. Dimensions & Weight	1000mm (W) × 1300mm (D) × 1800mm (H); ≈400kg
Mobility	Heavy-duty casters with brakes
9. Protection	Automatic cut-off for overload/overcurrent; stable long-term operation

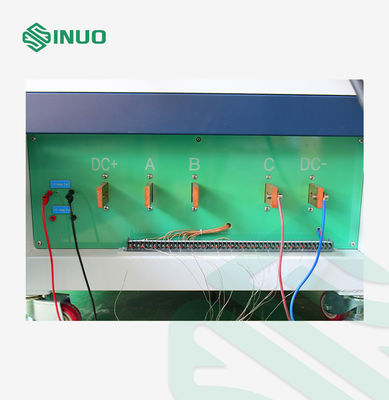

10. Temperature Rise Test Fixture	Size: 800 × 400 × 400mm; Acrylic transparent cover

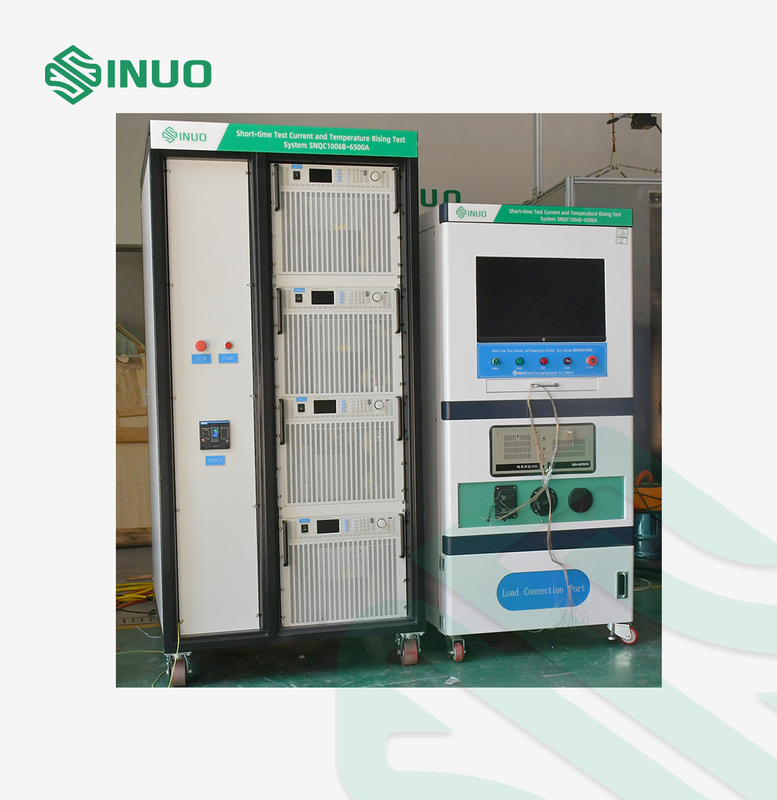

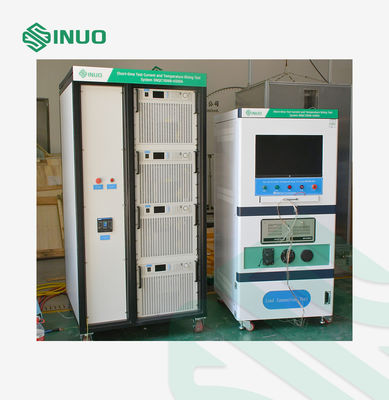

11. General Equipment Diagram	Includes complete system with computer setup
