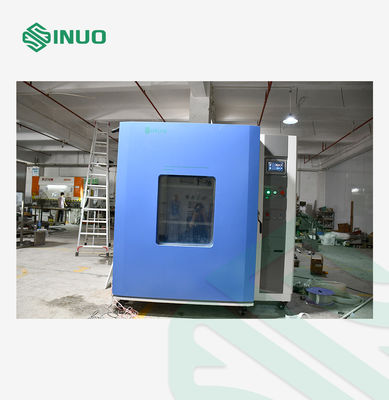

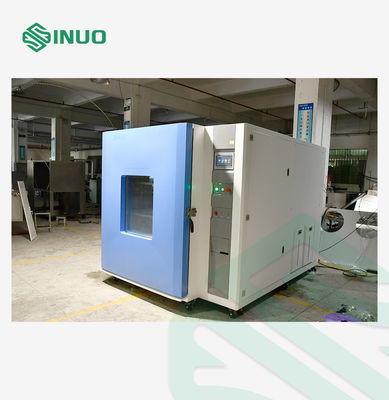

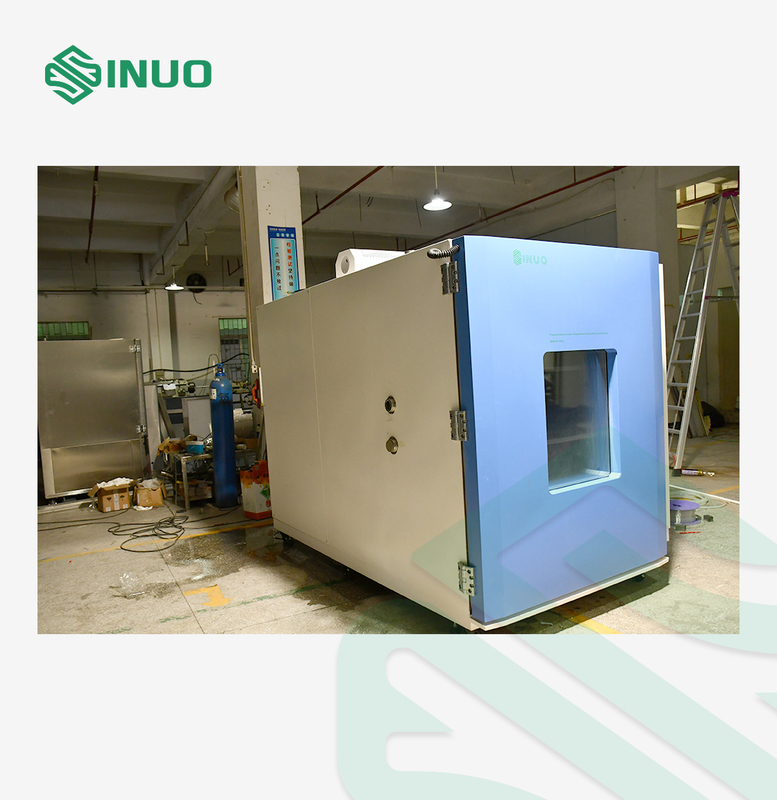

Temperature Humidity Chamber High and Low Temperature Test Equipment 960L

Temperature Humidity Chamber High and Low Temperature Test Equipment 960L

Nama merek:	Sinuo
Nomor Model:	SN881-960L
MOQ:	1
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	10 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Calibration Certificate (Cost Additional)

Penyimpangan suhu:

≤ ± 2,0 ℃

Penyimpangan kelembaban:

≤±3%

Dimensi dalam:

2000*600*800 mm

Dimensi eksternal:

2250*1650*1820 mm

Waktu pemanasan:

≧2-3°C/mnt

Waktu pendinginan:

≧ 1 ° C/mnt, rata -rata tanpa beban

Kisaran suhu:

-20 ° C ~+150 ° C.

Kisaran Kelembaban:

20%～98%RH

Kemasan rincian:

Ekspor Packing

Menyediakan kemampuan:

10 set per bulan

Deskripsi Produk

Temperature Humidity Chamber High and Low Temperature Test Equipment 960L

Complied Standards & Clauses

It conforms to standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Product Overview

This environmental test chamber is designed to simulate extreme climatic conditions, including cold, heat, humidity, and dryness. It is widely applied to raw materials and finished products such as electronics, electrical appliances, plastics, and other components. By subjecting products to alternating high and low temperatures as well as humidity cycles, the chamber helps evaluate and ensure product reliability during storage, transportation, and actual use.

Technical Parameters

Technical Parameters
Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size (mm)	External Size (mm)
	2000600800	225016501820
Temperature Range	-20°C ~+150°C
Humidity Range	20%～98%RH (Temperature: 20℃～85℃, refer to the temperature and humidity controllable range diagram, no active heat load)
Temperature fluctuation	±0.5℃
Humidity fluctuation	≤2.5%
Temperature deviation	≤±2.0℃
Humidity Deviation	≤±3%
Heating Rate	≧2-3°C/min
Cooling Rate	≧1°C/min, average no load
Load condition	None
Working noise	A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)
Temperature and Humidity Range Scheme
