EV Charging Connector Withdrawal Force Test Apparatus IEC 62196-1

EV Charging Connector Withdrawal Force Test Apparatus IEC 62196-1

Nama merek:	Sinuo
Nomor Model:	SNQC1013A
MOQ:	1
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	10 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Calibration Certificate (Cost Additional)

Berat utama pistol pengisi daya DC:

13,2kg

Berat utama pistol pengisi daya AC:

9.2KG

Ketinggian penurunan berat badan tambahan:

5cm

Berat tambahan:

0.8kg

Metode pengangkat:

Manual

Metode kontrol:

Manual

Metode penurunan berat badan tambahan:

Manual

stasiun uji:

Stasiun tunggal

Kemasan rincian:

Ekspor Packing

Menyediakan kemampuan:

10 set per bulan

Menyoroti:

EV charging connector withdrawal force tester

IEC 62196-1 compliant test apparatus

EV connector testing equipment with warranty

Deskripsi Produk

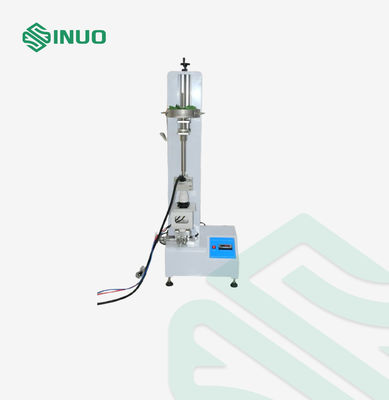

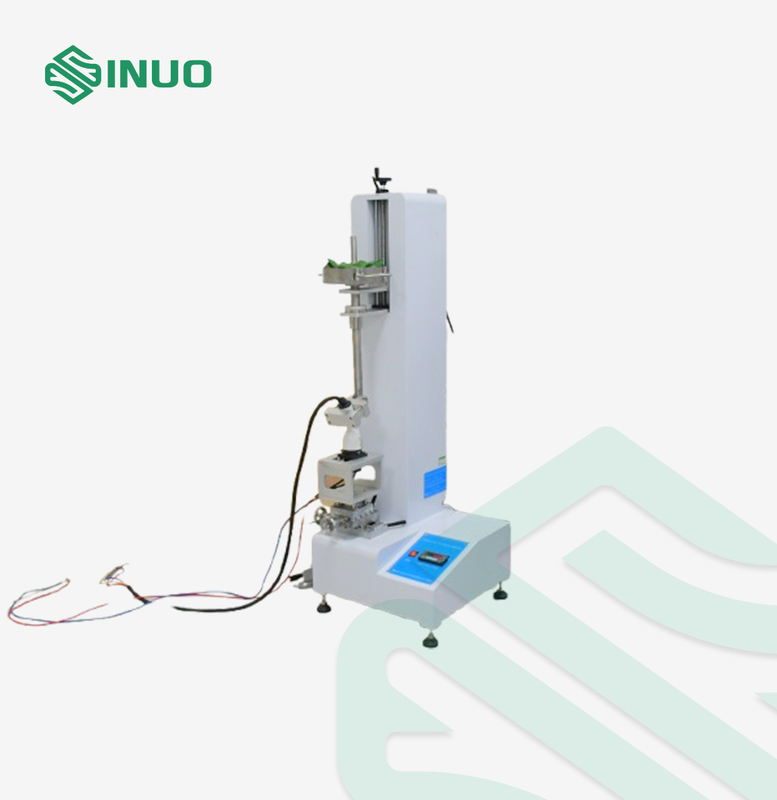

EV Charging Connector Withdrawal Force Test Apparatus IEC 62196-1

Complied Standards & Clauses

This withdrawal force test apparatus is required by IEC 62196-1:2022 clause 16.16.

Product Overview

This EV Charging Gun Withdrawal Force Test Apparatus is designed in compliance with IEC 62196-1:2022 clause 16.16. It accurately measures the maximum force required to insert the charging gun into the socket, ensuring the charging interface is easy to use and meets safety standards.

With a precise impact testing mechanism, the device simulates the standard insertion process, helping manufacturers verify that every charging gun and socket combination provides a smooth and reliable connection. Ideal for EVSE manufacturers, quality control labs, and testing facilities.

Technical Parameters

Test station	Single station
Additional weight drop height	5cm

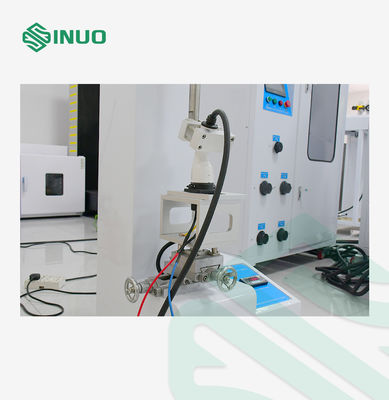

Charging gun’s clamp	Clamping handle, adjustable direction, so that the gun head is vertically downward

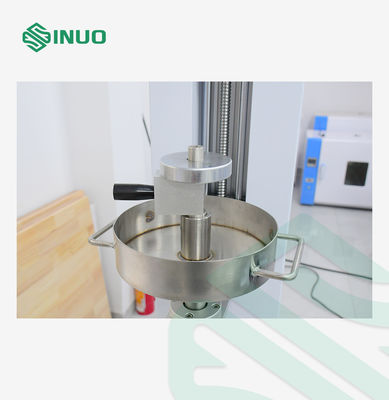

Weight configuration	Main weight of AC charging gun: 9.2kg Main weight of DC charging gun: 13.2kg Additional weight: 0.8kg Note: The weight of the main weight includes the weight of the clamp, guide rod, steel ball basin and charging gun sample. The weight of the main weight without the sample is about 4kg. An additional 10kg steel ball is equipped for fine-tuning the weight to make the entire main weight weight conform to AC or DC. Gun insertion force requirements.
Force monitoring	Pull pressure value sensor and instrument display
Control method	Manual, the instrument displays force value data in real time
Insert initial positioning	Precision slide table and long linear guide bearing positioning
Lifting method	Manual
Additional weight drop method	Manual
