Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment

Nama merek:	Sinuo
Nomor Model:	SNQC1007
MOQ:	1
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	10 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Mode drive:

Motor dan silinder

Metode operasi:

Operasi Tombol

Bobot Torsi:

6n*1, 7n*1, 12n*1, 15n*1, 23n*1, 110n*1 dapat mencapai 0,6nm, 0,7nm, 1.2nm, 1.5nm, 2.3nm, 11n.m tors

Beban Gaya Tarik:

40n*1, 50n*1, 60n*1, 100n*2.250n*1 dapat mencapai 160n, 200n, 240n, 250n, 500n, 600n Gaya tarik

Frekuensi Tarik:

1 siklus/dtk

Lengan torsi:

Ф200mm

Berat peralatan:

220kg

Dimensi peralatan:

L 1560mm*w 600mm*h 1530mm

Kemasan rincian:

Ekspor Packing

Menyediakan kemampuan:

10 set per bulan

Deskripsi Produk

Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment

Complied Standards & Clauses

It is designed and manufactured according to IEC62196-1: 2022 clause 25.3 Figure 17 and table 11, IEC60309-1: 2012 clause 23.3, etc..

Product Overview

This pull force and torque testing apparatus is designed for evaluating vehicle plugs, socket-outlets, and connectors to ensure they can endure the required mechanical stresses of pulling force and torsional load.

The equipment is developed and manufactured in full compliance with IEC 62196-1:2022 clause 25.3, Figure 17 and Table 11, as well as IEC 60309-1:2012 clause 23.3, among other relevant standards.

The pulling function is performed by a single-phase variable-speed motor that operates an eccentric mechanism, with adjustable motor speed to guarantee precise timing for each applied pull force. Torque is generated by an air cylinder that releases a calibrated torque weight, ensuring consistent and accurate torque measurement.

Technical Parameters

Operation Method	Button operation
Drive Mode	Motor and cylinder
Power Supply	Single phase AC220V±10%, 50/60Hz, 10A
Equipment Dimensions & Weight	L 1560mmW 600mmH 1530mm, approx. 220KG
Fixture	One set of universal fixtures
Torque Arm	Ф200mm
Torque Applied Time	0.01S ~ 99 hours 59 minutes 59 seconds, default 1 min
Pull Frequency	1 cycle/s
Pull Cycles	1-999999 cycles, can be preset, default 100 cycles
Pull Force Weights	40N1, 50N1, 60N1, 100N2,250N*1 Can achieve 160N, 200N, 240N, 250N,500N,600N pull force
Torque Weights	6N1, 7N1, 12N1, 15N1, 23N1, 110N1 Can achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m torque

Details

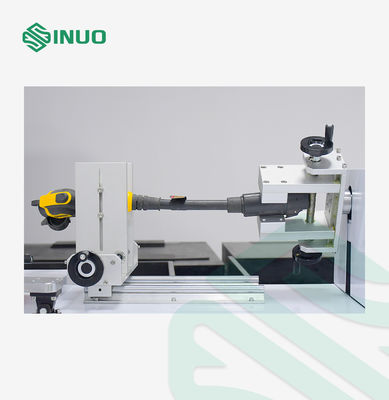

Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment 0
