IEC 62196 Electric Vehicle Connector Couplers Over-pressure Test System

IEC 62196 Electric Vehicle Connector Couplers Over-pressure Test System

Nama merek:	Sinuo
Nomor Model:	SNQC1016
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	30 set / bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

stasiun uji:

Stasiun tunggal

Standar Terapan:

IEC 62196-3

Tekanan tes:

1.0-10.0Bar, penggerak pompa booster

Metode kontrol:

Kontrol dan Operasi Cerdas Komputer

Tampilkan akurasi:

0,1 Batang

Akurasi tekanan:

+1% dari batas atas

Tekanan udara:

0.2-0.8MPA

Media uji:

Udara kering

Kemasan rincian:

Kotak kayu lapis

Menyediakan kemampuan:

30 set / bulan

Deskripsi Produk

IEC 62196 Electric Vehicle Connector Couplers Over-pressure Test System

Complied Standards & Clauses

Conforms to IEC62196-3 clause 101.6.

Equipment Overview

This overpressure test system is designed to meet IEC 62196-3-1 Clause 101.6 requirements. It conducts pressure leakage testing for liquid coolant systems up to 10 L, ensuring reliable sealing performance.

Equipped with a high-pressure booster pump, the system verifies the pressure resistance of each sample according to its rated specifications. The setup includes an electrical control unit, precision pressure regulation system, and water tank, with test samples manually installed and connected for accurate and repeatable testing.

Technical Parameters

Volume size	Less than 10L
Electrical control method	Computer intelligent control and operation
Water tank dimensions	WDH=500×500×1000mm With transparent viewing window for observe bubbles
Pressure control accuracy	+1% of the upper limit of the test pressure value, -1% of the lower limit
Display accuracy	0.1 Bar
Test medium	Dry air
Power supply	AC 220V, 60Hz, 0.3KW
Pressure control method	Computer control
Boost rate	Adjustable, non-uniform linear
Pressure hold time	0-9999s arbitrarily set, with seconds as the time unit, computer display
Test process	Boost-hold-relief
Drive air pressure	0.2-0.8MPa
Test pressure	1.0-10.0Bar, booster pump drive
Computer	Intel i5 4 G memory (or above) 512G SSD,Windows7 operating system and OFFICE processing software, with RS232 communication interface
Standard output Interface	ZG1/4 internal thread User should consider the connection between our ZG1/4 internal thread to tests samples
Pressure curve display	Real-time display, data collected by software
Test data storage	Can save reports in excel form
Test station	Single station
Safety protection
Power	Leakage protection, overload and short circuit protection
Motor	Overload, short circuit protection

Details:

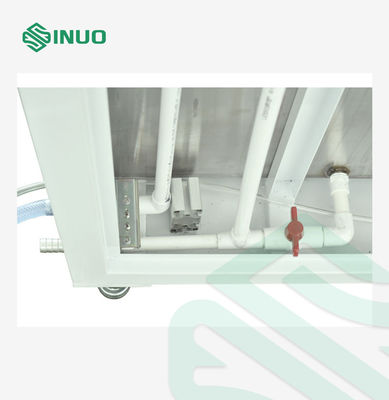

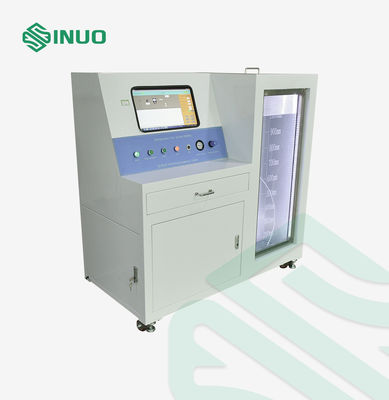

IEC 62196 Electric Vehicle Connector Couplers Over-pressure Test System 0

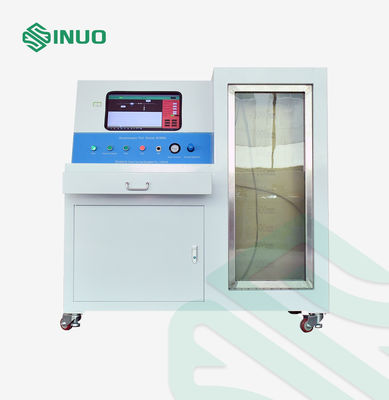

IEC 62196 Electric Vehicle Connector Couplers Over-pressure Test System 1
