Electric vehicle charging station Mechanical Strength & Impact Test Equipment

Electric vehicle charging station Mechanical Strength & Impact Test Equipment

Nama merek:	Sinuo
Nomor Model:	SN2122C
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	30 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Mode drive:

Motor + Mekanisme Reduser

Kekuatan dampak:

Standar 20J

Metode dampak:

Pendulum dan vertikal

ketinggian benturan:

200-500mm

Indikasi status:

Indikator LED

Posisi pendulum:

Adsorpsi elektromagnet

Jumlah dampak:

0-9999 kali

Penyesuaian tinggi pendulum:

Penyesuaian manual

Kemasan rincian:

Kasing kayu lapis

Menyediakan kemampuan:

30 set/bulan

Deskripsi Produk

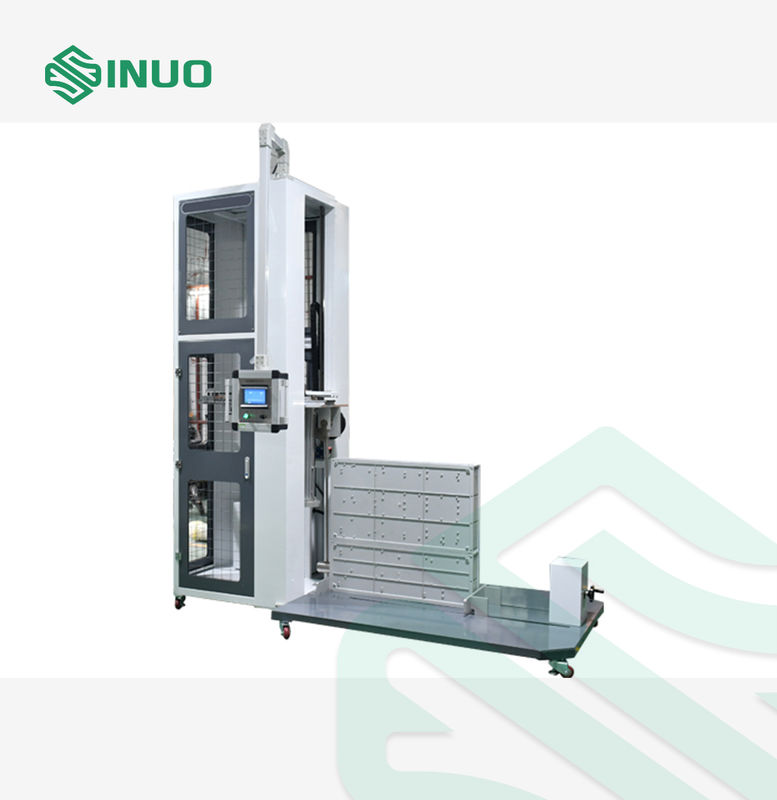

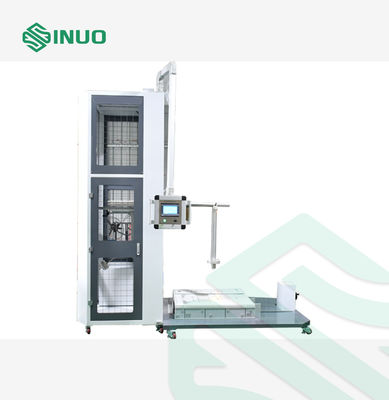

Electric vehicle charging station Mechanical Strength & Impact Test Equipment

Complied Standards & Clauses

This mechanical strength inpact test equipment complied to IEC 61851-1 2017 clause 12.11 standards.

Equipment Overview

1. Main purpose: This device is composed of two kinds of impact test apparatuses, and two kinds of mechanical strength test methods can be used to perform impact test on EVSE shell.

2. Installation sample: installation of a single sample is less than 1min

3. Applicable sample size:
Minimum (length × width × height, unit mm): customized according to the sample
Maximum (length × width × height, unit mm): customized according to the sample

4. The impact energy is formed by releasing the pendulum through the electromagnet; and it has automatic electric brake to prevent secondary impact;

5. The equipment is controlled by PLC, controlled by touch screen and remote control, and the height of the strike point can be adjusted by electric lift;

6. The adjustment of the striking height and the release of the striking element can be controlled remotely

7. The sample mounting seat is welded by high-strength steel plate and channel steel, which has the characteristics of high strength and impact resistance. The sample to be tested is fixed with a manual screw rod.

Technical Parameters

Control and operation	PLC control, 7-inch color touch screen control, remote control remote control.
Drive mode	Motor + reducer mechanism
Pendulum impact
Impact force	Standard 20J
Pendulum mass accuracy	±1%
Equivalent mass of impact hammer	5kg
Impact hammer form	Spherical impact hammer
Pendulum striking point height adjustment range:	Customized according to the sample
Pedulum arm height adjustment range	200-500mm
Specimen clamping adjustment range	Customized according to the sample
Impact point height adjustment	Electric adjustable
Number of impacts	0-9999 times can be preset
Status indication	LED indicator
Pendulum height (energy) adjustment	Manual adjustment
Pendulum positioning	Electromagnet adsorption
Pendulum release	Wireless remote control or touch screen operation
Impact point height adjustment method	Wireless remote control or touch screen operation
Security	360° all-round safety protection, automatic electric brake to prevent secondary impact

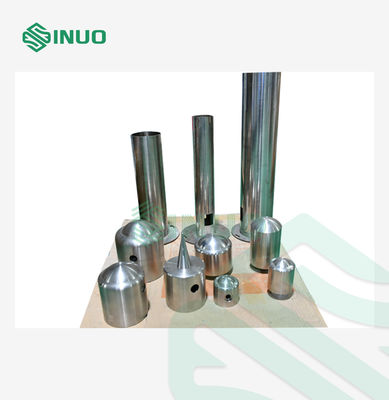

Vertical impact
Impact force	Standard 20J

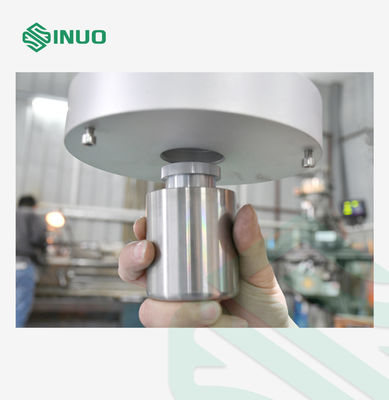

Installation method	The hammer head is adsorbed by electromagnet, and the conduit is screw-in type
Release method	Button control, electromagnet momentary release
Hammer release	Remote control
Height adjustment method	Remote control
