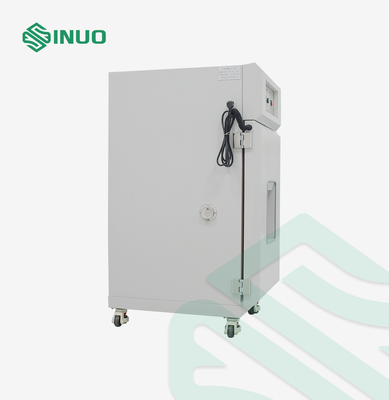

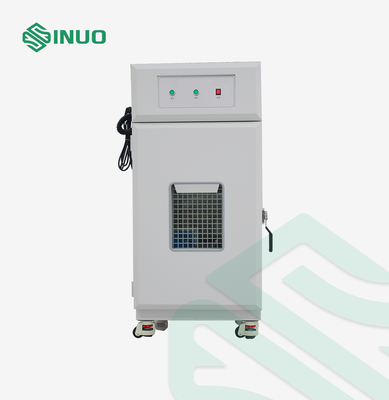

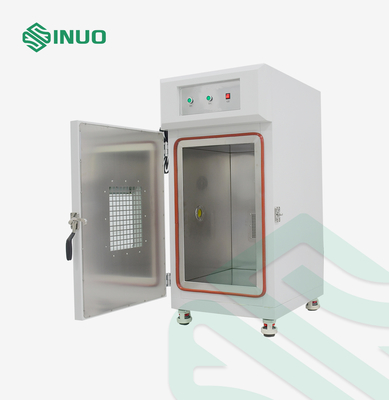

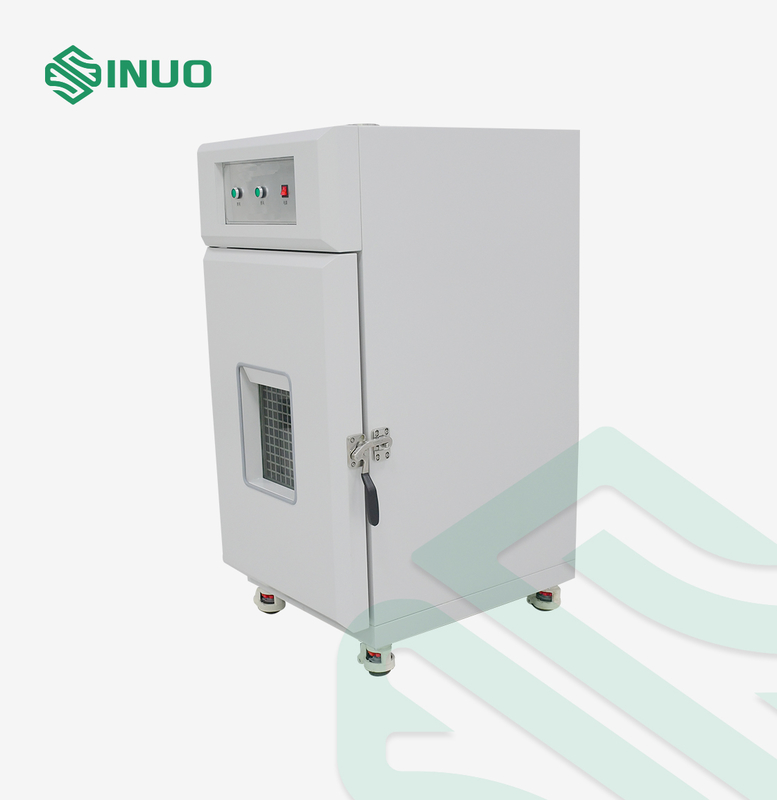

Battery Explosion-proof Test Chamber Lithium Battery Safety Test Equipment

Battery Explosion-proof Test Chamber Lithium Battery Safety Test Equipment

Nama merek:	Sinuo
Nomor Model:	SN552D-864L
MOQ:	1
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 Sets Per Month

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

Calibration Certificate (Cost Additional)

Internal Chamber Size:

W900 × H800 × D1200 mm (864L)

External Dimensions:

L1400 × W1850 × H2050 mm

Temperature Range:

0℃ ~ 85℃

Temperature Fluctuation:

≤±0.5℃

Temperature Deviation:

≤±1.5℃

Temperature Uniformity:

≤1.5℃

Heating Rate:

0℃–85℃, avg. 3℃/min (non-linear)

Cooling Rate:

85℃–0℃, avg. 1℃/min (non-linear)

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Deskripsi Produk

Battery Explosion-proof Test Chamber Lithium Battery Safety Test Equipment

Complied Standards & Clauses

This testing device conforms to UL 1662:2012, UL 2056: 2012, UN38.3(2012), IEC62133-2012, IEC 62281: 2006, IEC 60086: 2007.

Product Overview

The SN552D-864L Battery Explosion-proof Test Chamber is specifically designed to ensure the safety of laboratory personnel and equipment during lithium battery testing procedures such as overcharge, over-discharge, thermal abuse, and more.

This chamber complies with UL 1662:2012, UL 2056:2012, UN38.3 (2012), IEC 62133:2012, IEC 62281:2006, and IEC 60086:2007, offering secure containment in the event of battery explosion, fire, or smoke emission.

Constructed entirely of reinforced steel with explosion-proof treatment, this chamber provides both temperature control and monitoring systems, ensuring precise testing with high safety standards.

Technical Parameters

Item	Specification
Internal Chamber Size	W900 × H800 × D1200 mm (864L)
External Dimensions	Approx. L1400 × W1850 × H2050 mm
Temperature Range	0℃ ~ 85℃, accuracy ±0.01℃
Temperature Fluctuation	≤±0.5℃
Temperature Deviation	≤±1.5℃
Temperature Uniformity	≤1.5℃
Heating Rate	0℃–85℃, avg. 3℃/min (non-linear)
Cooling Rate	85℃–0℃, avg. 1℃/min (non-linear)
Material (Inner Chamber)	SUS304 stainless steel (2mm) + cold-rolled steel (3mm)
Explosion-proof Design	Tested for 230–325Ah battery module pressure resistance
Noise Level	≤70 dB (1–1.5m distance)
Observation Window	300×300 mm, triple-layer explosion-proof glass
Fire Suppression	Optional: automatic/manual fire extinguisher
Video Monitoring	HD camera ≥5MP, remote control, storage compatible
Wheels & Base	4 universal wheels + 4 fixed feet
Control Interface	7-inch color touchscreen, PLC-controlled
Program Capacity	100 programs × 100 segments max
Communication	USB, RS485, LAN interface
Sample Rack	1 layer, Teflon coated, load-bearing up to 80kg
Alarm Function	Sound & light alarm: Red (fault), Green (running), Yellow (standby)
