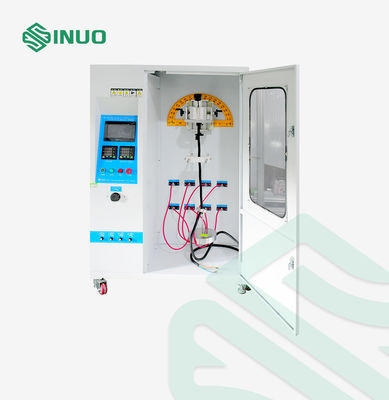

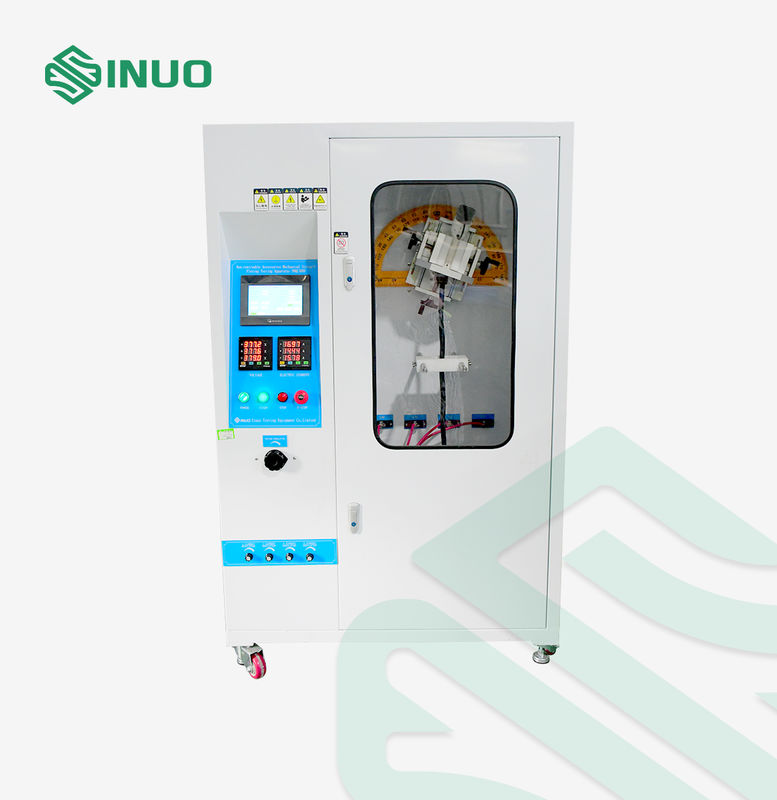

EV Plug Durability Tester Vehicle Charging Connector Flexibility Testing Apparatus

EV Plug Durability Tester Vehicle Charging Connector Flexibility Testing Apparatus

Nama merek:	Sinuo
Nomor Model:	SNQC1009
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	5 sets/month

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

Calibration Certificate (Cost Additional)

Drive Mode:

Servo motor

Test Station:

Single

Flexing Rate:

0-60 cycles / min, can be preset

Load Weights:

20N, 25N, 50N, 75N, 100N

Sample Clamping Method:

Mechanical clamping, the position is adjustable

Electrical Control Method:

PLC intelligent control, 7-inch touch operation

Flexing Cycles:

0~999999 can be preset, default 20000 cycles

Flexing Angle:

0-360° can be adjusted freely

Packaging Details:

Export packing

Supply Ability:

5 sets/month

Deskripsi Produk

EV Plug Durability Tester Vehicle Charging Connector Flexibility Testing Apparatus

Complied Standards & Clauses

The flexibility testing apparatus is designed and manufactured according to requirements of IEC62196-1: 2022 clause 26.4 table 14, IEC60309-1: 2012 clause 24.4 figure 9, etc.

Equipment Structure

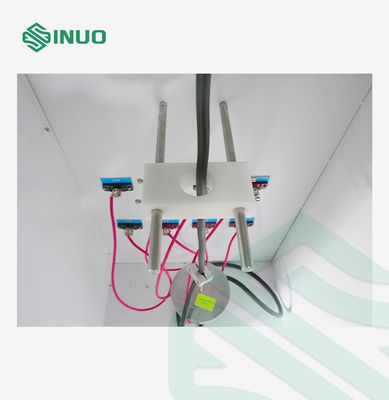

It is used to process the mechanical load flexing test of the vehicle plugs, socket-outlets and couplers non-rewireable accessories.

The equipment adopts PLC control and operated by 7-inch colour human-machine interface, uses a servo motor to control the flexing angle. The flexing angle, flexing speed and the test cycles can be preset on touch screen. The test is automatically carried out according to the set parameters. When the test times reach the preset number of test times, the device automatically stops and gives the test completion signal prompt. The test equipment has the advantages of high-precision digital display, high-efficiency digital frequency conversion, precise speed adjustment, six-digit memory setting, multi-function modular fixture, rotating center centering measuring tool, and built-in load which can supply load voltage to test sample during test.

Technical Parameters

Test Station	Single
Electrical Control Method	PLC intelligent integrated control, 7-inch humanized touch interface operation
Drive Mode	Servo motor
Sample Clamping Method	Mechanical clamping, the position of clamping point is adjustable

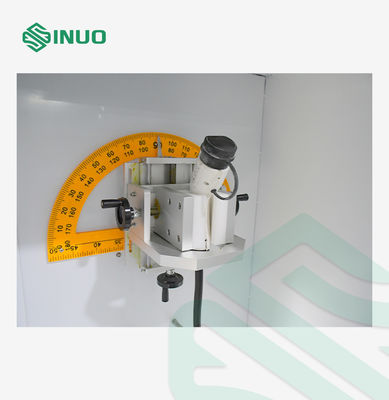

Flexing Angle	0-360° can be adjusted freely (default 90°, 45°on either side of the vertical)
Flexing Rate	0-60 cycles / min, can be preset
Flexing Cycles	0~999999 can be preset, default 20000 cycles
Load Weights	20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N
Load Power	Built-in, with adjustable phase voltage between conductors 0-250V and current AC0-400A adjustable Note: for load >400A, please use an external power source
Test Judgment	Judging by the signals given when the current is conducted or not
Equipment Dimensions & Weight	L 850mm W 800mm H 1500mm, the whole machine is about 300Kg
Power Supply	Three phase AC380V±10%, 50Hz
