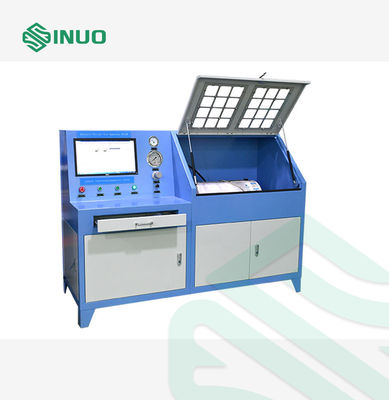

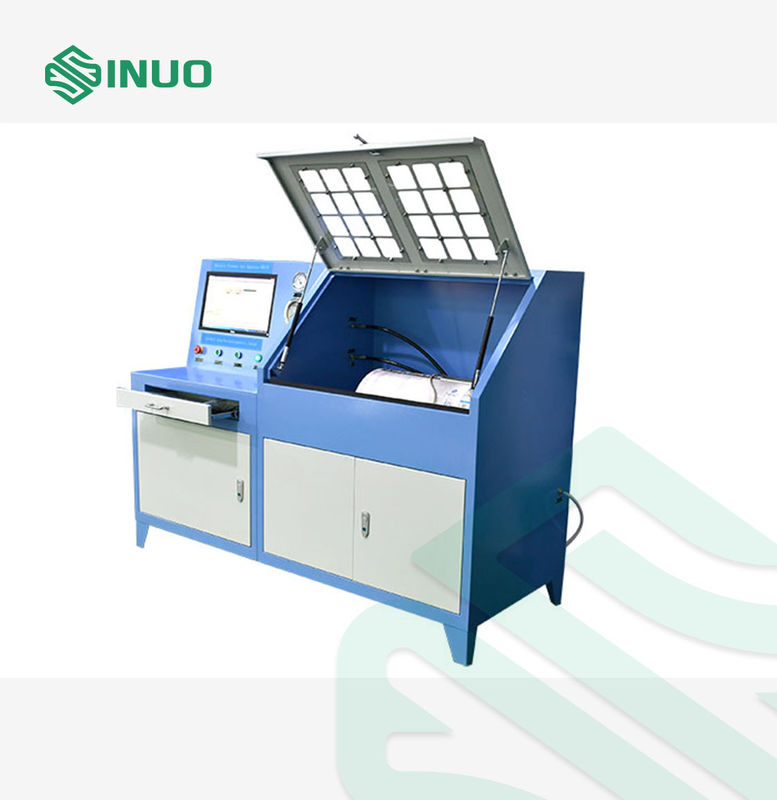

Computer Controlled Pressure Testing Automotive Hydrostatic Test Equipment

Nama merek:	Sinuo
Nomor Model:	SNQC1016
MOQ:	1
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Butuh sumber udara:

0.2-0.8mpa, 1.0nm3/mnt

Tekanan Tinggi:

2-100 MPa

Akurasi pengukuran:

±0,5%FS

Pengumpulan data:

Kartu Akuisisi Kecepatan Tinggi

stasiun uji:

satu

Sistem pembuangan:

Semi-otomatis

Media uji:

air bersih

Sistem kontrol:

Kontrol otomatis komputer

Kemasan rincian:

Pengemasan Ekspor

Menyediakan kemampuan:

10 set per bulan

Deskripsi Produk

Computer Controlled Pressure Testing Automotive Hydrostatic Test Equipment

Complied Standards & Clauses

It can meet the national standard ISO6802, ISO6803, ISO8032, IEC 60335-2-34 and other standards.

Product Overview

Sinuo has rich experience in pressure testing. It provides reliable pressure/burst test equipment, leakage test equipment, and pressure pulse test equipment in the field of pipeline and reactor testing. It can perform pressure performance tests on hydraulic hoses, hydraulic hose assemblies, automobile brake pipes, pressure vessels, powertrain pipes and other pressure-resistant parts according to ISO6802, ISO6803, ISO8032, IEC 60335-2-34 and other standards.

Our company has developed a new type of pressure test device based on the working principle of the pneumatic booster device introduced from abroad and combined with the actual situation in my country. The burst (pressure resistance) test equipment produced by our company includes: hose pressure burst test bench, hose pressure pulse test machine, automobile parts pressure test bench, burst test bench, etc. This equipment meets other general and special international and domestic test standards for pressure components.

Technical Parameters

Item	Specifications
Need air source	0.2-0.8MPa, 1.0Nm3/min (gas source provided by the customer)
High pressure	2-100Mpa (automatic conversion with high pressure pump)
Pressure increase rate	The ratio is controllable, the adjustment range is 0.1-2MPa/S, and it can be adjusted arbitrarily.
Measurement accuracy	±0.5%FS
Time of pressure maintenance	Arbitrary setting, with seconds as the timing unit
Data collection	American NI high-speed acquisition card, acquisition rate 100,000 times/S.
Peak record	Measurement and control Labview software records
Test station	One
Power device	Gas-liquid booster pump
Exhaust system	Semi-automatic
Test medium	Clean water
Medium temperature	Normal temperature
Export flow rate	1.2L/min
Volume	30L
Operating temperature	0-80℃
Output interface	RC1/4 internal thread
Control box size	18007001300
Control System	Computer automatic control
Monitor	Mosaic Industrial Display
Control Software	Labview Software
Test report	Microsoft Office
