IEC 60529 Compliant IPX9K Spray Water Ingress Testing Equipment For Automotive Enclosure

IEC 60529 Compliant IPX9K Spray Water Ingress Testing Equipment For Automotive Enclosure

Nama merek:	Sinuo
Nomor Model:	SN4412-1000L
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 Set Per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Ukuran Ruang Uji Bagian Dalam:

P1000 × L1000 × T1000 mm

Suhu Jet Air Panas:

RT ~ 80°C ±5°C, dapat disesuaikan

Tekanan air jet:

80 ~ 100 bar (8000~10000 kPa)

Laju Aliran Jet Air:

15 ±1 L/mnt (14–16 L/mnt)

Kapasitas beban meja putar:

Beban maksimal ≤30 kg

Kecepatan meja putar:

kecepatan 5–17 putaran/menit dapat disesuaikan

Kemasan rincian:

kayu lapis

Menyediakan kemampuan:

10 Set Per Bulan

Deskripsi Produk

IEC 60529 Compliant IPX9K Spray Water Ingress Testing Equipment For Automotive Enclosure

Product Introduction

This IPX9K waterproof test chamber fully complies with international standards:
IEC 60529:1989 + A1:1999 + A2:2013 Clause 14.2.9, IEC 62196-3:2026 Clause 20, IEC 62196-1:2025 Clause 20.2, DIN 40050-9 and ISO 20653.
These standards define IP protection ratings for electrical equipment housings of road vehicles, covering two core protection categories:
1. Protection against solid foreign bodies including dust;
2. Protection against high-pressure, high-temperature water ingress.

Material & Structure

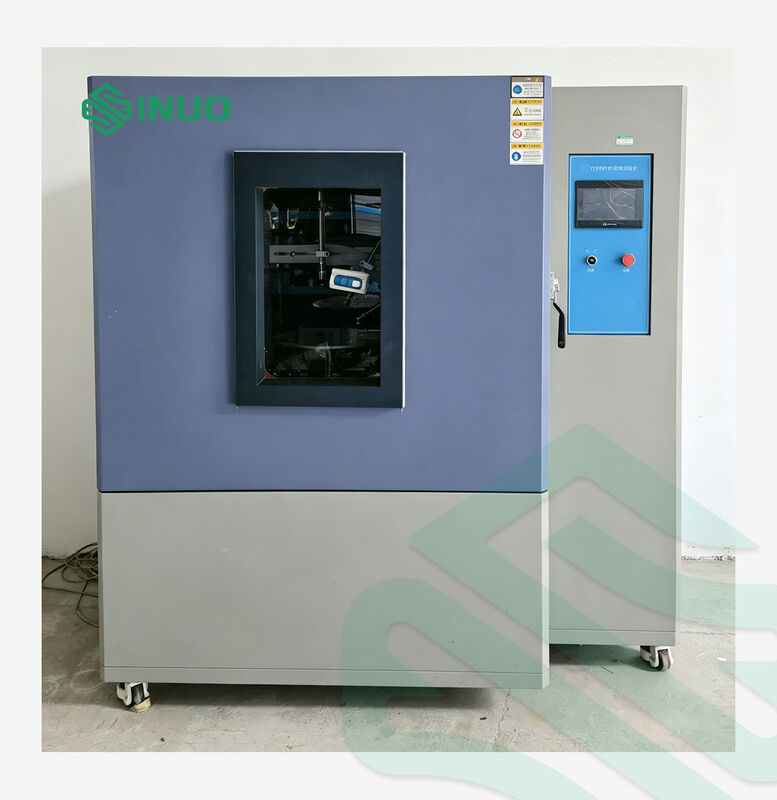

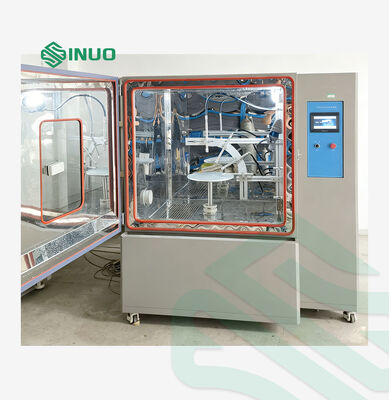

The outer cabinet and inner test chamber are both fabricated from SUS304 stainless steel.

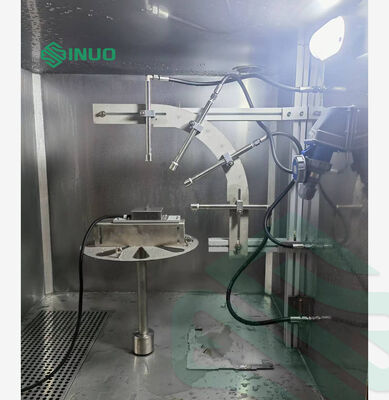

The upper section integrates the test workspace and control panel; the lower section houses core components: imported Italian high-pressure pump & solenoid valves, SUS304 constant temperature and backwater tanks, turntable drive motor, and reduction transmission assembly.

All running parameters including water temperature, nozzle operation, pressure, test duration and flow rate are regulated by PLC. Users configure all settings via a 7-inch Taiwan WEINVIEW touchscreen, with upgraded industrial touchscreen options available.

Technical Parameters

Chamber Structure Composition	Test room, water storage tank, control unit, product dewatering buffer zone, jet system
Inner Chamber Dimensions	L1000mm×W1000mm×H1000mm
Outer Cabinet Dimensions	L 1500mm × W 1200mm × H 1950mm
Jet System Core Components	High-pressure & high-temperature water pump, pressure gauge, solenoid valve, hydraulic pipeline
Pipeline Diameter	3/4 inch
Jet Nozzles	4 pcs
Hot Water Jet Temperature	RT ~ 80°C ± 5°C (adjustable)
Jet Water Pressure	80 ~ 100 bar (8000 ~ 10000 kPa, 81.5 ~ 101.9 kg/cm²)
Water Jet Flow Rate	15 ± 1 L/min (14 ~ 16 L/min)
Nozzle-to-Sample Jet Distance	100 ~ 200 mm
Water Jet Angle	0°, 30°, 60°, 90°
Single-Angle Jet Test Time	0 ~ 90 s, pre-settable & adjustable
Sample Turntable Load Capacity	≤ 30 kg
Turntable Rotation Speed	5 ~ 17 r/min
Turntable Diameter	Φ500 mm
Total Test Run Time Control	1 min ~ 9999 min
Water Circulation System	Closed-loop water recycling design
Standard Jet Surface	Front face of the test sample
Pressure Monitoring	Real-time digital pressure gauge
Control System	Self-developed touchscreen control system
Chamber Waterproof Wall & Bracket	Tempered glass waterproof wall; stainless steel square tube bracket
Chamber Observation Door	Large-view tempered glass door with built-in wiper

Product Details
