IEC 60095-1 Lead-Acid Battery Electrolyte Retention Test Machine

Nama merek:	Sinuo
Nomor Model:	SNF11
MOQ:	1
harga:	dapat dinegosiasikan
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	5 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Stasiun Uji:

Stasiun tunggal

Modus Berkendara:

Motor servo + silinder pneumatik

Perlengkapan sampel:

maks L×D×T ≤ 400×400×500 mm

Sudut rotasi:

0°, 90°, 180°, 270°

Sudut Miring:

45° (posisi mekanis)

Kecepatan miring:

< 1 detik

Waktu Interval Kemiringan:

0–999,9 dtk (dapat diprogram)

Memiringkan Waktu Penahanan:

0–999,9 dtk (dapat diprogram)

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

5 set per bulan

Menyoroti:

IEC 60095-1 lead-acid battery tester

battery electrolyte retention test machine

electric vehicle battery testing equipment

Deskripsi Produk

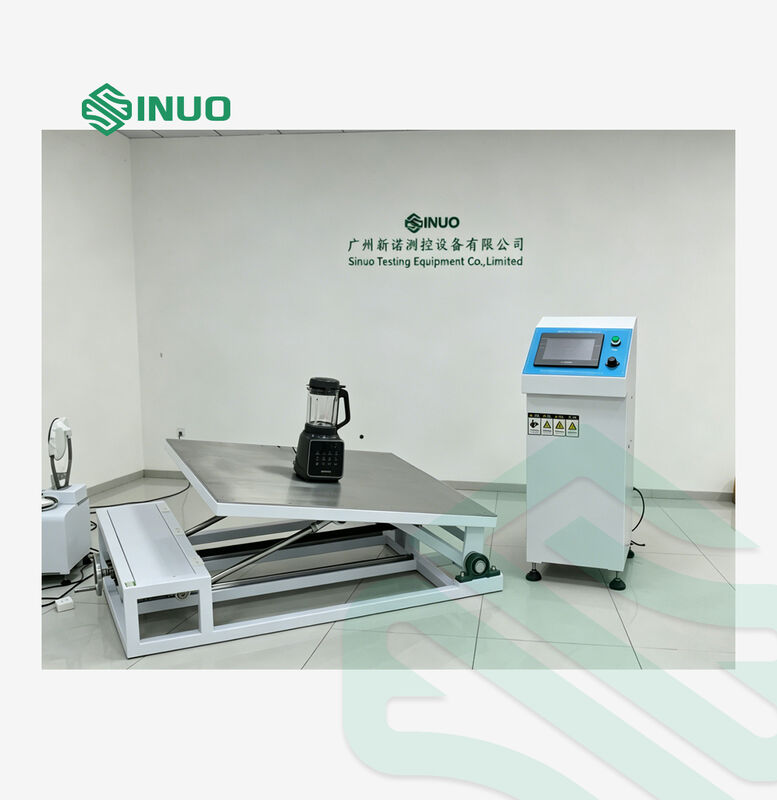

IEC 60095-1 Lead-Acid Battery Electrolyte Retention Test Machine

Product Overview

The Electrolyte Retention Test Machine is designed and manufactured in accordance with IEC 60095-1:2018 "Lead-acid starter batteries - Part 1: General requirements and methods of test", Clause 9.9. This equipment verifies whether electrolyte leakage occurs when a lead-acid starter battery is subjected to tilting in different orientations.

The system automatically completes a full test cycle including four-direction tilting, holding time, and reset. It is suitable for EU certification testing, R&D verification, and quality inspection applications.

Structure and Features

PLC control with touchscreen operation - parameters can be set and system runs automatically with one-key start
Servo motor drives the rotary platform to achieve precise positioning at four 90° positions

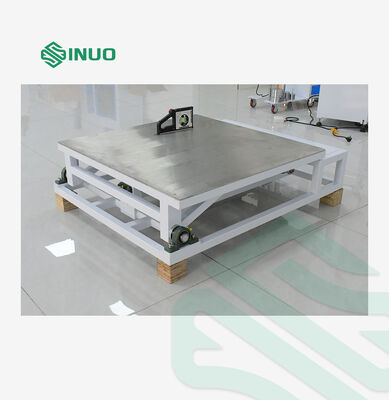

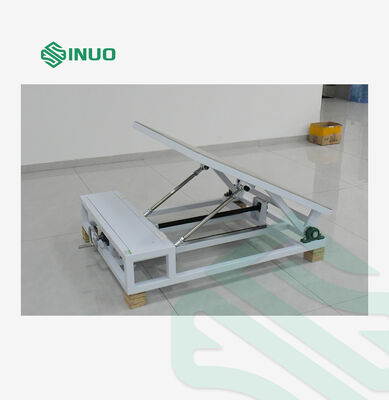

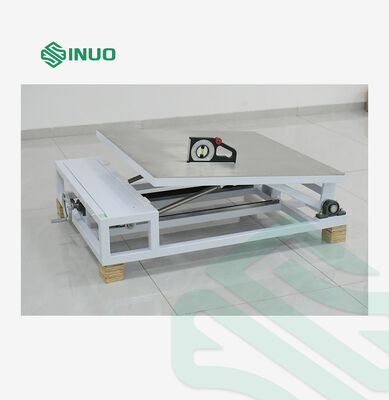

Pneumatic cylinder drives the tilting platform with mechanical horizontal limit, enabling fast switching between 0° and 45° positions

Test Principle and Process

The servo motor drives the platform to rotate 90° each time, allowing the battery sample to be tested in four different orientations. The pneumatic cylinder quickly drives the tilting platform to switch between 0° and 45° positions.

Technical Parameters

Parameter	Specification
Model	SNF11
Station	Single station
Control System	PLC intelligent integrated control, 7-inch HMI touchscreen
Drive Mode	Servo motor + pneumatic cylinder
Sample Fixture	Multi-point perforated plate fixture, adaptable to various sample sizes, max W×D×H ≤ 400×400×500 mm
Rotation Angle	0°, 90°, 180°, 270°
Tilting Interval Time	0-999.9 s (programmable)
Tilting Angle	45° (mechanical positioning)
Tilting Speed	< 1 s
Tilting Holding Time	0-999.9 s (programmable)
Equipment Size	Frame: approx. 1400 × 800 × 800 mm (W×D×H) Control Cabinet: 400 × 500 × 800 mm (W×D×H)
Weight	approx. 200 kg

Main Configuration List

Component	Brand
Electrical Control Cabinet	Sinuo
PLC	Mitsubishi
HMI Touch Screen	Weintek
Motor	Inovance
Cylinder	Airtac / Shenzhi
Gear Reducer	Domestic
Electrical Components	FUJI, Schneider, Omron, CHINT, etc.
Machine Frame	Sinuo
Sample Fixture	Sinuo
Software	Sinuo
