IPX3/IPX4 Oscillating Tube Test System for Automotive Parts IEC 60529 Test Equipment

IPX3/IPX4 Oscillating Tube Test System for Automotive Parts IEC 60529 Test Equipment

Nama merek:	Sinuo
Nomor Model:	SN444
MOQ:	1
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 Set Per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

alat pengukur tekanan:

0~0,25MPa

Aliran air:

0,07 L/Minx

Kecepatan rotasi:

1r/menit

Diameter mesin putar:

Φ600mm

kontrol listrik:

PLC & Layar Sentuh

Waktu pengujian:

1-99999S dapat diatur sebelumnya

Kecepatan hujan:

IPX3: 4S/waktu (2 × 120 °); IPX4: 12S/waktu (2 × 360 °);

Lubang jarum:

Φ0.4mm

Kemasan rincian:

KEMASAN EKSPOR

Menyediakan kemampuan:

10 Set Per Bulan

Menyoroti:

PLC & Touch Screen Control Oscillating Tube Test System

Φ0.4mm Needle Hole IPX3/IPX4 Test Equipment

Φ600mm Turntable Water Ingress Testing Equipment

Deskripsi Produk

IPX3/IPX4 Oscillating Tube Test System for Automotive Parts

Compliant with IEC 60529:2013 standards, this IPX3/IPX4 water spray test oscillating tube system is designed for waterproof testing of electrical and electronic products, specifically automotive components.

Standards Compliance

Designed and manufactured according to IEC 60529:2013 standards for IPX3 and IPX4 waterproof level testing.

System Overview

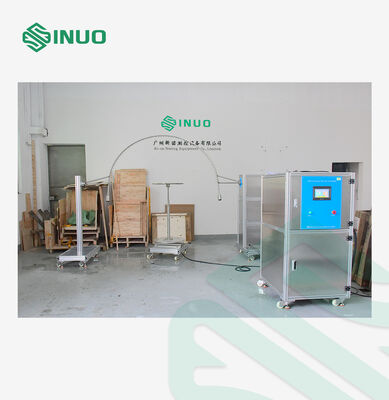

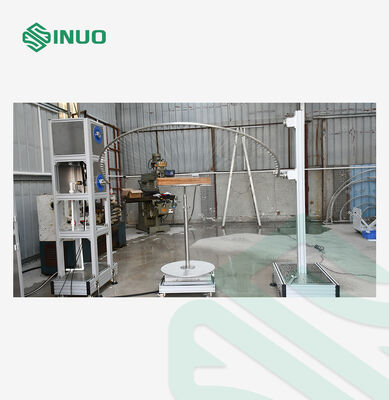

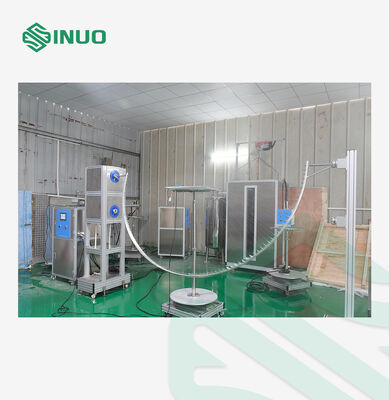

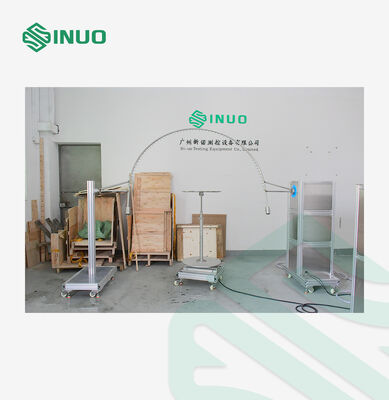

Complete IPX3~4 oscillating tubes test system includes oscillating tubes swing device, full set of oscillating tubes (R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm), turntable, and intelligent water supply and control cabinet.

The intelligent water supply and control cabinet features water supply tank, water pump, and control system with PLC, frequency converter, and flow meter for precise test water supply flow control.

Technical Specifications

Parameter	Specification
Water Supply	Water flow rate >10L/min ±5% clean water without inclusion. Equipped with clean water filtration unit
Oscillating Tube Sizes	R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel
Needle Hole	Φ0.4mm
Included Angle of Two Holes	IPX3: 120°; IPX4: 180°

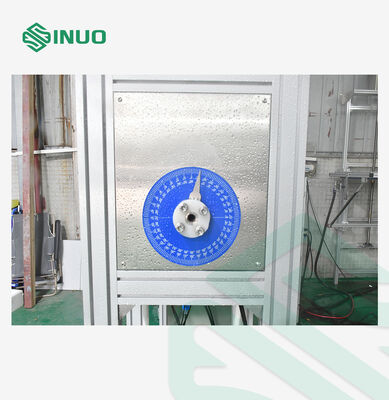

Oscillating Tube Swing Angle	Max. ±175° can be preset (Standard requires IPX3: 120°; IPX4: 360°. Note: 360° cannot be achieved with turntable)
Raining Speed	IPX3: 4s/time (2120°); IPX4: 12s/time (2360°)
Water Flow	Can be set according to oscillating tube size and number of pin holes (0.07 L/min per hole)

System Details
