Glow Wire Tester with PLC Control and 7-inch Touchscreen for Flammability Testing Equipment with 500°C–960°C Range Compliant with IEC 60695 and UL746A

Name: Glow Wire Tester with PLC Control and 7-inch Touchscreen for Flammability Testing Equipment with 500°C–960°C Range Compliant with IEC 60695 and UL746A
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN772
Availability: InStock

Nama merek:	Sinuo
Nomor Model:	SN772
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	30 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Elemen bersinar:

Φ4mm ± 0,04mm Ni/CR (77/20), berbentuk cincin, posisi horizontal

Sistem kendali:

PLC terintegrasi dengan layar sentuh warna 7 inci

Akurasi Suhu:

± 10%, fluktuasi <3 ° C.

Kisaran Suhu:

500 ° C - 960 ° C.

Waktu pengujian:

30S ± 0,1s (dapat disesuaikan dari 1–999.9s)

Tekanan spesimen:

0,95n ± 0,1n (dapat disesuaikan)

Diameter port knalpot:

100mm

Papan Tempat Tidur Pengapian:

Pinus putih 10mm + 12–30g/m² kertas sutra

Kemasan rincian:

Kasus kayu lapis

Menyediakan kemampuan:

30 set/bulan

Menyoroti:

PLC Control Glow Wire Tester

500°C–960°C Flammability Testing Equipment

IEC 60695 Glow Wire Test Apparatus

Deskripsi Produk

Flammability Testing Equipment For Simulating Thermal Stress Using Glow Wire Tester

Complies with IEC 60695 and UL746A Standards for reliable flammability testing of electrical and electronic products.

Complied Standards & Clauses

Manufactured according to IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13 standards. Required by IEC 60598 Clause 13.3.2, UL746A, and other international safety regulations.

Equipment Overview

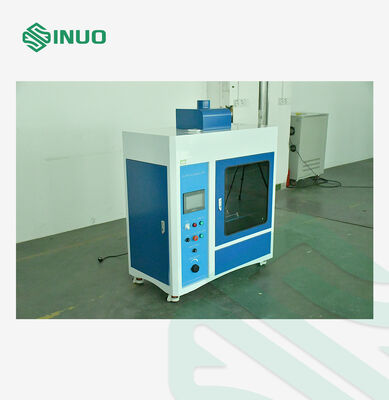

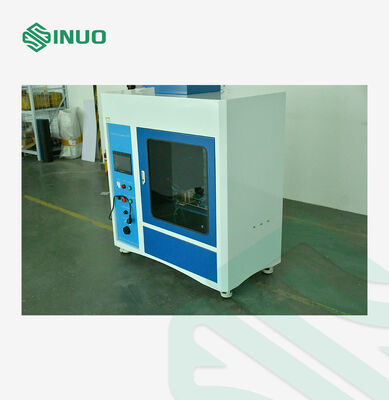

The SN772 Glow Wire Test Apparatus is a specialized testing instrument designed to simulate thermal stress caused by glowing components or ignition sources, such as overloaded resistors or heated elements. This equipment complies with international safety standards including IEC 60695 series, UL746A, and IEC 60598, making it suitable for testing the ignitability and fire resistance of electrical and electronic products, plastic materials, and components used in household appliances.

Featuring PLC control and a 7-inch touchscreen interface, the SN772 ensures accurate temperature control, intuitive operation, and precise positioning via a digital stepper motor. Researchers and manufacturers can conduct reliable glow wire ignition and flammability tests with enhanced repeatability and efficiency.

Technical Parameters

Parameter	Specification
Model	SN772
Standards	IEC 60695-2-10/11/12/13, UL746A, IEC 60598, IEC 60335
Control System	PLC integrated with 7-inch color touchscreen

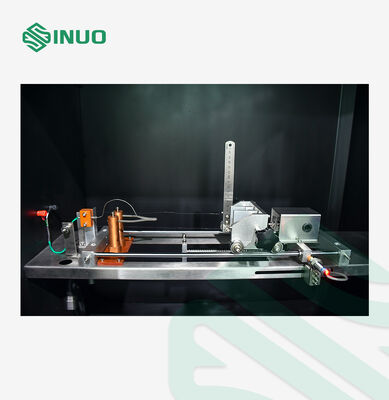

Glowing Element	Φ4mm ± 0.04mm Ni/Cr (77/20), ring-shaped, horizontal position
Thermocouple	K-type (B+B USA), armored, temp resistance 1100°C
Temperature Range	500°C-960°C
Temperature Accuracy	±10%, fluctuation <3°C
Temperature Sensing Delay	1.7 seconds
Thermostat Accuracy	12-bit A/D ±0.05%
Specimen Pressure	0.95N ± 0.1N (adjustable)
Max Heating Depth	7mm ± 0.5mm
Specimen Travel Speed	~13mm/s
Testing Time	30s ± 0.1s (adjustable from 1-999.9s)
Ignition Bedding Board	10mm white pine + 12-30g/m² silk paper
Test Site Volume	≥0.5m³, black background, illuminance ≤ 20 Lx
Dimensions	1130mm * 600mm * 1400mm
Weight	115 kg
Power Supply	AC 230V ±10%, 60Hz, single-phase
Exhaust Port Diameter	100mm
