IEC 62196-1:2022 Compliant Screw Terminal Clamping Tester for EV Connectors with 75mm Rotating Diameter and (10±2) r/min Testing Rate

IEC 62196-1:2022 Compliant Screw Terminal Clamping Tester for EV Connectors with 75mm Rotating Diameter and (10±2) r/min Testing Rate

Nama merek:	Sinuo
Nomor Model:	SNQC1012
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	20 Set/Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Klausul yang Diterapkan:

Klausul 13.3.1 Fig12, Tabel 3

Standar Terapan:

IEC 62196-1:2022

Diameter berputar:

75mm

Tingkat pengujian:

(10±2) putaran/menit

Catu daya:

AC220V,50/60HZ

Berat putar:

0.4 ~ 70.3kg

Ukuran:

790mmx400mmx1500mm

Tinggi (h) (mm):

260-660mm

Kemasan rincian:

Kasus kayu lapis

Menyediakan kemampuan:

20 Set/Bulan

Menyoroti:

IEC 62196-1:2022 Compliant Screw Terminal Clamping Tester

75mm Rotating Diameter EV Connector Test Machine

(10±2) r/min Testing Rate Terminal Clamping Force Test Machine

Deskripsi Produk

Screw Terminal Clamping Strength Tester for EV Connectors IEC 62196-1

This specialized testing equipment evaluates the reliability and structural integrity of screw terminal clamping mechanisms in EV connectors, ensuring compliance with international safety standards.

Compliance Standards

Conforms to IEC 62196-1:2022 clause 13.3.1 fig12, table 3 requirements for electric vehicle conductive charging systems.

Equipment Functionality

This compliance testing machine assesses whether clamping screw terminal designs and structures meet requirements for preventing wire damage during installation and normal operation. It verifies the terminal's ability to withstand stress during regular usage conditions.

The system features programmable testing cycles with preset counter functionality and automatic shutdown with alarm notification when testing cycles are completed.

Technical Specifications

Power Supply	AC220V, 50/60Hz
Counting Range	1-9999 cycles (150 cycles/15 minutes default)
Testing Rate	(10±2) rotations per minute
Rotating Weight Range	0.4-70.3kg (refer to table 3 for details)
Rotating Diameter	75mm
Bushing Hole Diameters	6.5, 9.5, 13, 14.5, 15.9, 19.1, 22.2, 25.4, 28.6, 31.8, 38.1, 44.5mm
Height Range (H)	260-660mm
Overall Dimensions	790mm * 400mm * 1500mm

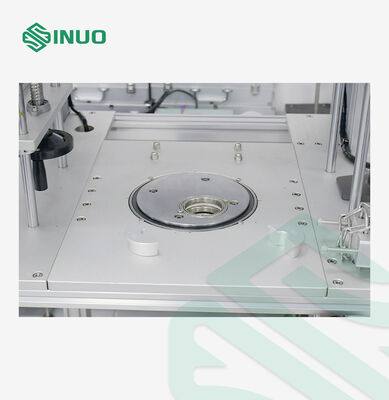

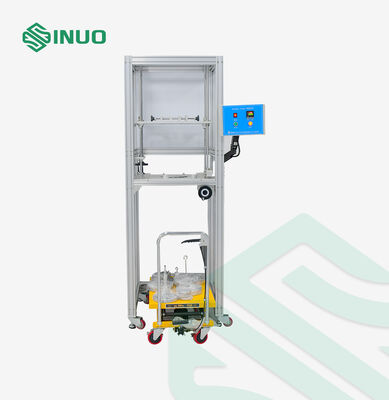

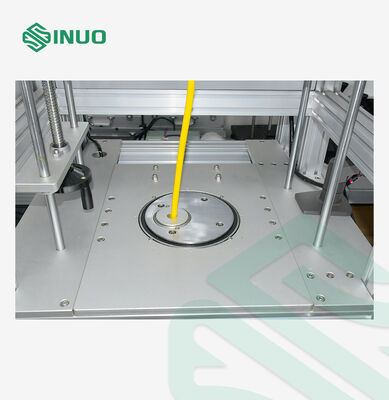

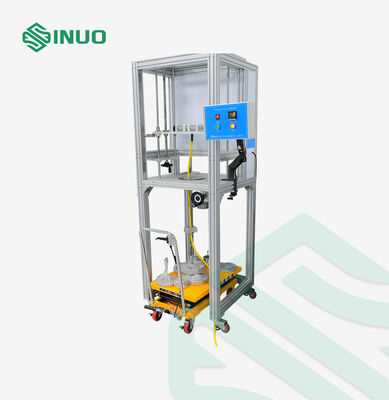

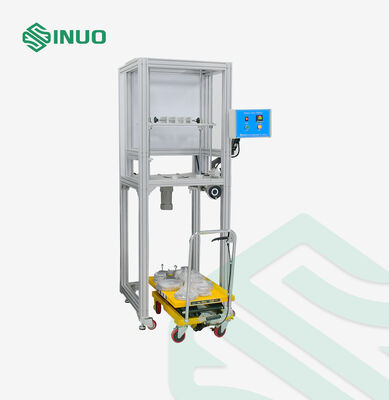

Equipment Details
