Electromagnetic Vibration Testing Machine with 2200Kg.f Force, 1-3000Hz Frequency Range, and 51mm Maximum Displacement for EV Battery Safety

Electromagnetic Vibration Testing Machine with 2200Kg.f Force, 1-3000Hz Frequency Range, and 51mm Maximum Displacement for EV Battery Safety

Nama merek:	Sinuo
Nomor Model:	SN553-EV222HG120VT120.GP.VCSUSB-2
MOQ:	1
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 Set Per Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Calibration Certificate (Cost Additional)

Kekuatan Eksitasi Sinusoidal Maksimum:

2200Kg.f puncak

Kekuatan Kegembiraan Acak Maksimum:

2200kg.f RMS

Kekuatan Eksitasi Dampak Maksimum:

4400kg.f

Frekuensi resonansi orde pertama:

2600 Hz ± 5%

Rentang Frekuensi:

1～3000Hz

Perpindahan maksimum:

51 mm hal

Kecepatan Maksimum:

2.0m/s

Kebocoran fluks:

＜10gauss

Kemasan rincian:

Ekspor kemasan

Menyediakan kemampuan:

10 Set Per Bulan

Menyoroti:

2200Kg.f Force Vibration Test System

1-3000Hz Frequency Range Electromagnetic Vibration Tester

51mm Maximum Displacement Electromagnetic Vibration Testing Machine

Deskripsi Produk

Electric Vehicle Testing Equipment Featuring High Capacity Electromagnetic Vibration System for Battery Safety and Assurance

Complied Standards & Clauses

Sinuo provides comprehensive excitation and testing solutions to verify product quality according to national and international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, ASTM, IEC62133, UN38.3, UL2054, IEC 60086, and ECE R100.

Product Overview

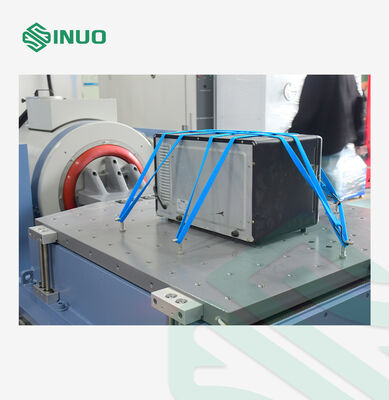

The SN553-EV222HG120VT120.GP.VCSusb-2 Electromagnetic Vibration Testing Machine is engineered for high-performance vibration simulation in demanding applications. This system ensures your aerospace components, automotive electronics, and consumer goods can withstand real-world mechanical stress.

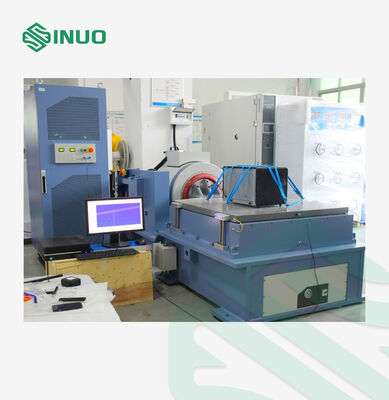

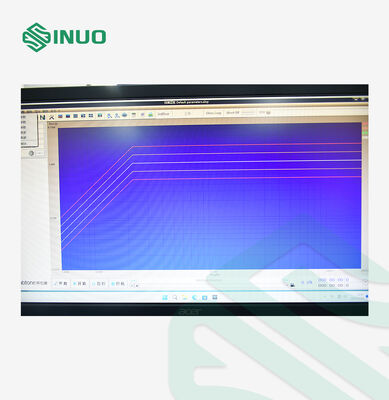

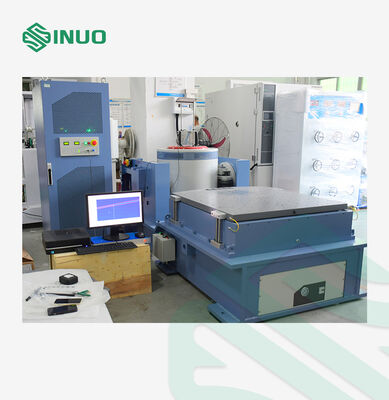

Featuring a powerful 2200Kg.f force, frequency range of 1-3000Hz, and complete vertical & horizontal platforms with cooling systems and digital controllers, this system meets global testing standards including ISO, MIL-STD-810, and IEC. It's the ideal solution for durability verification and reliability analysis.

Technical Parameters

Electromagnetic Excitation Generator Parameters

Parameter	Specification
Maximum sinusoidal excitation force	2200Kg.f peak
Maximum Random Exciting Force	2200Kg.f rms
Maximum impact excitation force	4400Kg.f
Frequency Range	1～3000 Hz
Maximum displacement	51 mm p-p
Maximum speed	2.0m/s
Maximum acceleration	100G (980 m/s²)
First-order resonant frequency	2600 Hz±5%
Payload	300 kg
Vibration isolation frequency	2.5 Hz
Moving coil diameter	Ф340 mm
Moving coil weight	22kg
Screw on the table	17×M10
Flux leakage	＜10gauss
Equipment size	L 1080mm×W 920mm×H 950mm (vertical table)
Equipment weight	1920Kg (Excluding horizontal slide table)

LA-24K Digital Switching Power Amplifier

Parameter	Specification
Output power	20KVA
Output voltage	120V
Output current	200A
Amplifier efficiency	≥90%
Switching frequency	116KHz
SNR	≥65dB
Noise	≤70dB
Amplifier weight	500KG
Amplifier size	W600mm×D 900mm×H 1280mm

Product Details
