IPX5 IPX6 Jet Nozzle IP Rating Test Equipment Nozzle IEC 60529

IPX5 IPX6 Jet Nozzle IP Rating Test Equipment Nozzle IEC 60529

Nama merek:	Sinuo
Nomor Model:	SN447
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	100 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Isi Tes:

IPX5 dan IPX6

Diameter internal nozzle:

Ф6.3mm, Ф12.5mm

Jarak semprotan air:

2.5 ~ 3m

Standar Terapan:

IEC60529

ALAT PENGUKUR TEKANAN:

0~0,25MPa

Durasi tes:

Kemungkinan 1 menit/m² (minimum: 3 menit)

Tingkat pengiriman IPX5:

12,5±0,625L/mnt

Tingkat pengiriman IPX6:

100±5 L/mnt

Kemasan rincian:

Kotak karton

Menyediakan kemampuan:

100 set/bulan

Deskripsi Produk

IPX5 IPX6 Jet Nozzle IP Rating Test Equipment Nozzle IEC 60529

Complied Standards & Clauses

IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX5 & IPX6.

Equipment Overview

The jet nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX5.

It ensures that the water spray speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 6.

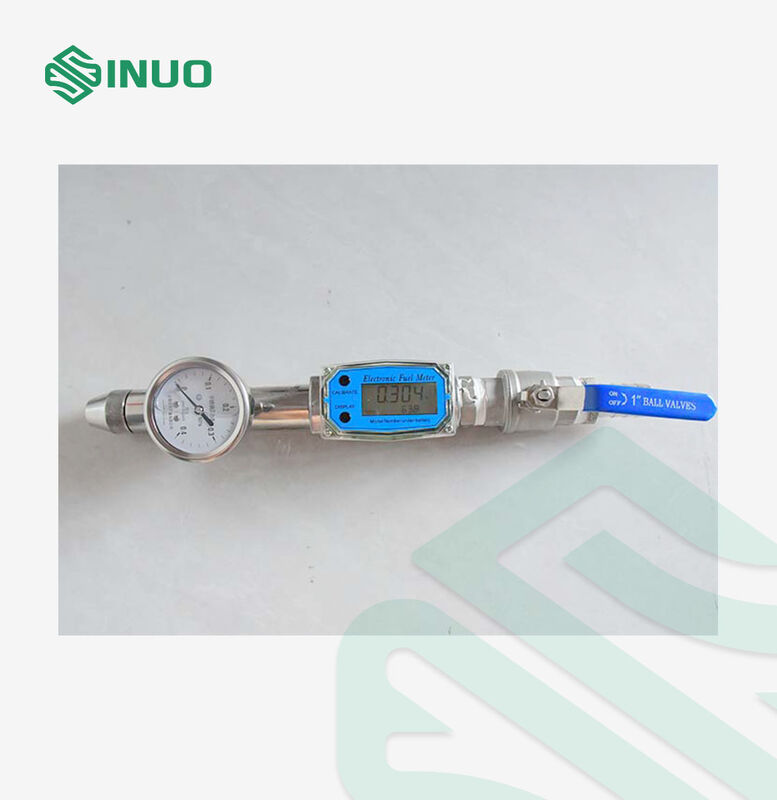

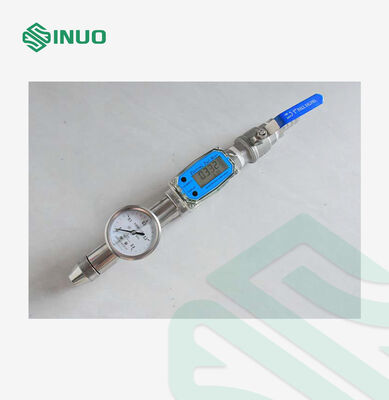

The Jet Nozzle IPX5 Set consists of a jet handle that is equipped with a digital flow mater and a pressure gauge.

– Ф6.3 mm nozzle that assemble easily to the gun.

– Stainless steel joint, easy to butt fiber hose.

Technical Parameters

Model	SN447B-Ф6.3mm	SN447B-Ф12.5mm(Optional)
Nozzle Internal Diameter	Ф6.3mm		Ф12.5mm
Delivery Rate per Standard requirements	12.5±0.625L/min		100±5 L/min
Distance from Nozzle to Enclosure Surface	2.5~3m
Core of the Substantial Stream	Circle of approximately 40 mm diameter at 2.5 m distance from nozzle		Circle of approximately 120 mm diameter at 2.5 m distance from nozzle
Test Duration	Likely 1min/m² (minimum: 3 min)

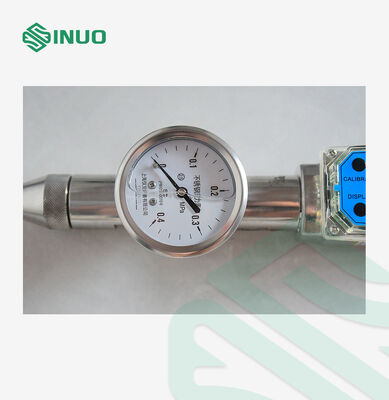

Pressure Gauge	0~0.25MPa

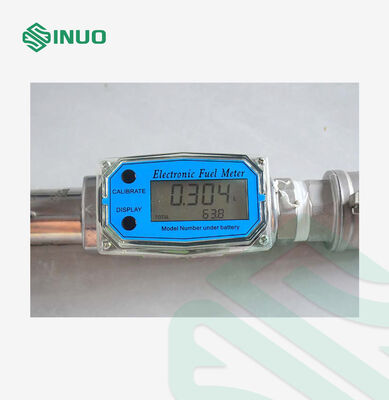

Digital flow meter	8L/min ~120L/min

Details

IPX5 IPX6 Jet Nozzle IP Rating Test Equipment Nozzle IEC 60529 0
