ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber

ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber

Nama merek:	Sinuo
Nomor Model:	SN882A
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	20 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Sumber Cahaya:

UV-A 340

Standar Terapan:

ISO4892-3:2006, dll.

Daerah Paparan:

5175cm2

Kekuatan Lampu:

40 W/PC

Kisaran suhu papan tulis:

40～85℃ di bawah cahaya

Kisaran Suhu Kamar:

RT+5℃～85℃

Intensitas radiasi:

UV-A 340:1,55W/cm2

Kisaran radiasi:

UVA340:0.3W/m2 ∙1.1 W/m2

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

20 set/bulan

Deskripsi Produk

ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber

Complied Standards & Clauses

This UV accelerated aging test chamber is designed in full accordance with major international testing standards for plastics, coatings, and non-metallic materials. It supports a wide range of exposure and weathering simulations, ensuring reliable and repeatable test results.

Supported standards include:

ISO 4892-3:2006 – Plastics — Methods of exposure to laboratory light sources — Part 3: Fluorescent UV lamps
ASTM G154 – Standard Practice for Operating Fluorescent UV Lamp Apparatus for Exposure of Nonmetallic Materials
ASTM D4329 – Standard Practice for Fluorescent UV Exposure of Plastics

These standards cover UV radiation, temperature, and moisture exposure requirements, helping manufacturers evaluate material durability, aging resistance, colorfastness, and product lifespan under accelerated environmental conditions.

Equipment Overview

This UV Accelerated Aging Test Chamber uses high-quality imported UVA-340 fluorescent UV lamps as its light source. By simulating key environmental factors such as ultraviolet radiation in natural sunlight, nighttime cooling, condensation, and rainfall, the chamber performs accelerated weathering tests to evaluate the material’s resistance to aging.

It provides reliable data on how materials change over time under long-term outdoor exposure. With this chamber, you can compare different materials, optimize existing formulations, and accurately assess the durability and lifespan of your products, helping you make better decisions in material selection and product development.

Technical Parameters

Weight	170kg
Power supply	Match client's local power supply requirements, well grounded
Chamber inner material	SUS stainless steel plate
Lamp life	≥3000h(related to irradiance)
Total exposure area	5175cm²
Center distance in lamp tube	70mm
Irradiance range	UVA340:0.3W/m²～1.1 W/m²
Irradiation intensity	UV-A 340:1.55W/cm2
Standard sample holder	48 standard samples (75×150mm) can be placed
Blackboard temperature range	40～85℃ under light, tolerance:±3℃
Heating	√
Condensation	√
Spray	√
Chamber temperature range	RT+5℃～85℃, tolerance:±3℃
Chamber dimensions	Width:141cm * depth:56 cm * height:135 cm
Required installation area	Width:≥260 cm, Depth:≥200 cm
Wave length range	UV-A 340:295-400nm
Enclosure material	Electrostatic spraying on A3 board
Control method	LCD touch screen controller, programmable
Light source	UV-A 340
Lamp quantity	8 pcs
Water source	Pure water

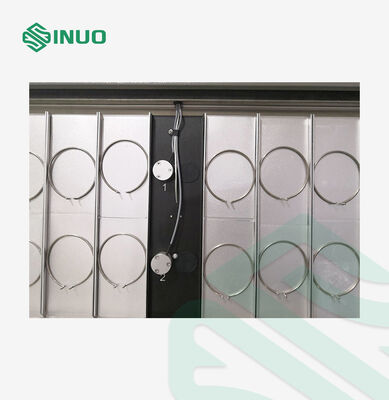

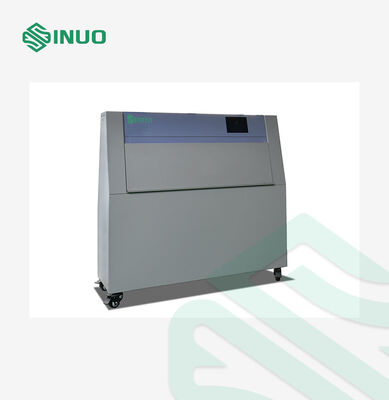

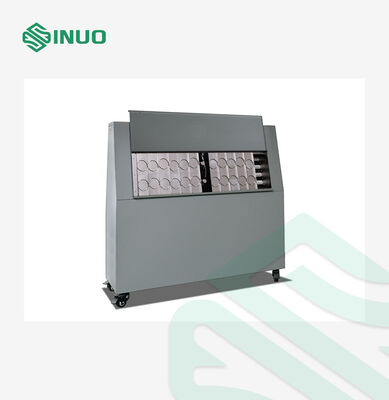

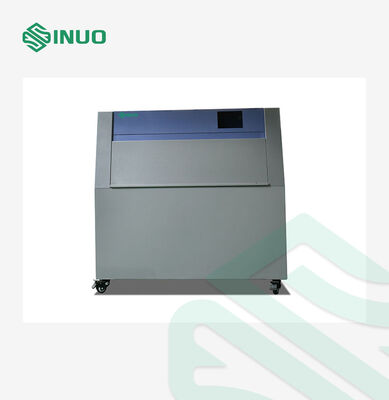

Details
