High-Temperature Aging Oven Air Circulation Accelerated Aging Chamber

High-Temperature Aging Oven Air Circulation Accelerated Aging Chamber

Nama merek:	Sinuo
Nomor Model:	SN8811
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	20 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

Calibration Certificate (Cost Additional)

Kisaran Suhu:

RT+10 ℃ hingga 300 ℃

Ukuran interior ruang uji:

50X50X45cm

Keseragaman suhu:

Fluktuasi suhu:

Nilai tukar udara:

8-20 kali/jam

Waktu Ketinggian Suhu:

60 Menit (RT hingga 200 ℃)

Berat:

Dimensi (L×D×T):

91×55×99cm

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

20 set/bulan

Deskripsi Produk

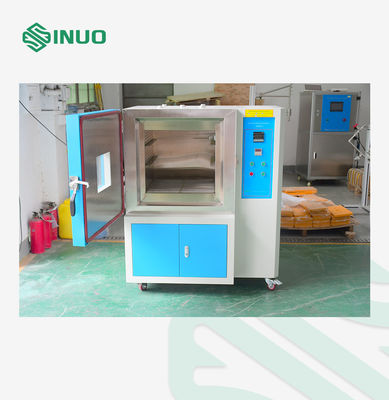

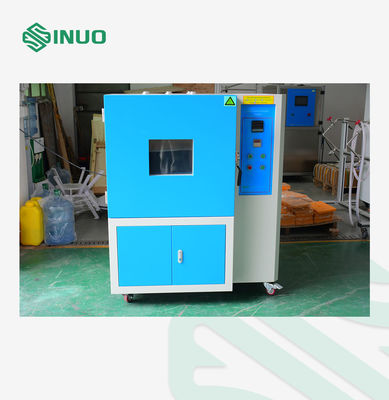

High-Temperature Aging Oven Air Circulation Accelerated Aging Chamber

Complied Standards & Clauses

Conform to testing norms: IEC 60811, etc.

Equipment Overview

The Oven Circulation Chamber is specially engineered for precise aging resistance testing of rubber, plastic, and insulating materials. Unlike conventional aging ovens, it delivers exceptional temperature constancy, uniform airflow distribution, and fast heat recovery after door opening. With optimized air exchange control and superior thermal sealing, this chamber ensures highly stable and repeatable test conditions. Fully compliant with IEC 60811 and GB/T 2951 standards, the SN8811 offers a reliable and efficient solution for laboratories and manufacturers seeking accurate and consistent aging test performance.

Technical Parameters

Test chamber interior size	50X50X45cm
Dimension(W×D×H)	91×55×99cm
Weight	70KG
Temperature uniformity	1%(By maximum temperature computation)
Temperature fluctuation	0.5%(By maximum temperature computation)
Temperature range	RT+10℃ to 300℃
Temperature elevation time	60 Minutes(RT to 200℃)
Air Exchange Rate	8-20 times/hours
Electricity	2.5kw
Power	1∮,220V,12A

Details

High-Temperature Aging Oven Air Circulation Accelerated Aging Chamber 0
