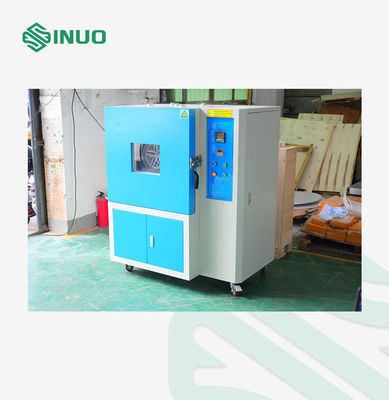

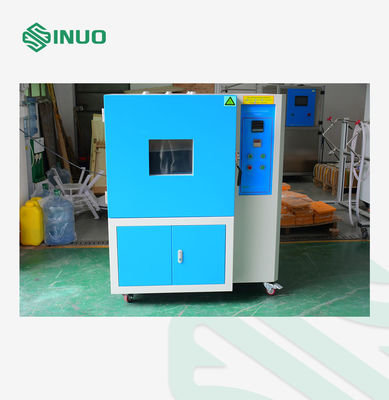

Oven Circulation Chamber Environmental Aging Test Chamber IEC 60811

Nama merek:	Sinuo
Nomor Model:	SN8811
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	20 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

Calibration Certificate (Cost Additional)

Ukuran interior ruang uji:

50X50X45cm

Kisaran Suhu:

RT+10 ℃ hingga 300 ℃

Fluktuasi suhu:

0,5%

Keseragaman suhu:

Waktu Ketinggian Suhu:

60 Menit (RT hingga 200 ℃)

Nilai tukar udara:

8-20 kali/jam

Dimensi (L×D×T):

91×55×99cm

Berat:

70kg

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

20 set/bulan

Deskripsi Produk

Oven Circulation Chamber Environmental Aging Test Chamber IEC 60811

Complied Standards & Clauses

Conform to testing norms: IEC 60811, etc.

Equipment Overview

This tester is designed to test the aging resistance specially for rubber, plastic and some insulator materials. Different from normal aging oven, this tester has:

1.Temperature constancy

2.Temperature uniformity

3.Heat–up speed after door open

4.Wind speed &air exchange rate of testing chamber

5.Seal of heat-isolation of testing chamber

6.Special adjusting apparatus of air exchange

Technical Parameters

Test chamber interior size	50X50X45cm
Temperature range	RT+10℃ to 300℃
Electricity	2.5kw
Temperature fluctuation	0.5%(By maximum temperature computation)
Temperature uniformity	1%(By maximum temperature computation)
Temperature elevation time	60 Minutes(RT to 200℃)
Air Exchange Rate	8-20 times/hours
Dimension(W×D×H)	91×55×99cm
Weight	70KG
Power	1∮,220V,12A
