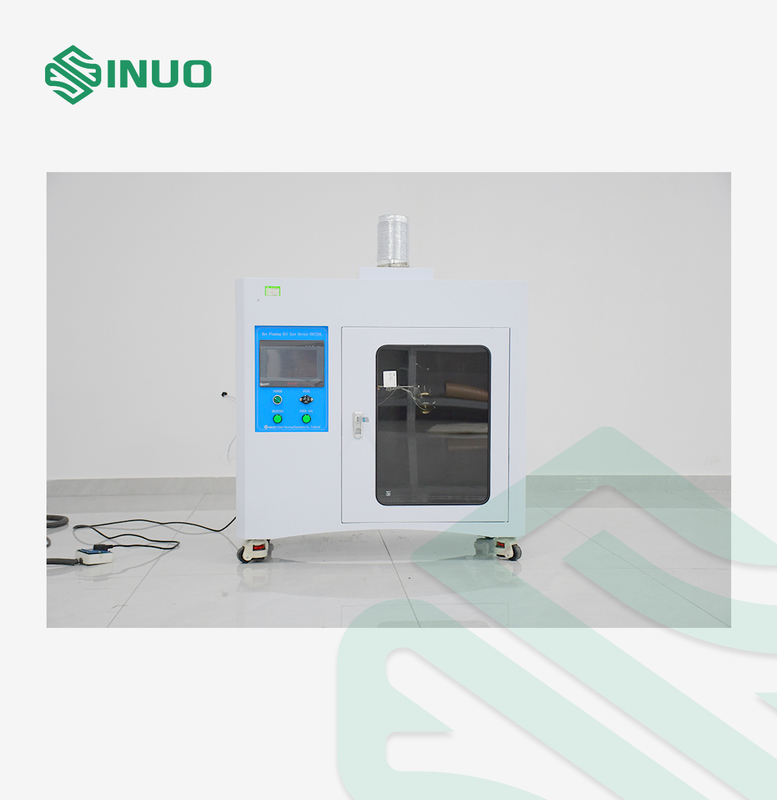

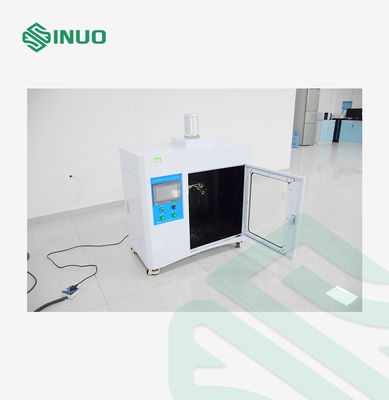

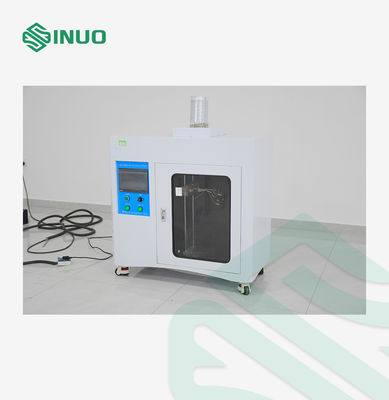

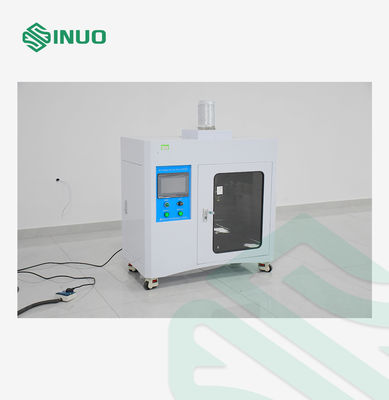

Hot Flaming Oil Test Device IEC60950 Fire Hazard Testing Machine

Hot Flaming Oil Test Device IEC60950 Fire Hazard Testing Machine

Nama merek:	Sinuo
Nomor Model:	SN7713A
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	5 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Calibration Certificate (Cost Additional)

Waktu pembakaran minyak menyala panas:

1 mnt

Kecepatan menuangkan minyak menyala panas:

1 ml/detik

Tinggi tuang minyak api panas:

100mm

Waktu tuang minyak menyala panas:

10s

Ukuran peralatan:

1130mm* 600mm* 1400mm

Berat peralatan:

147kg

Kontrol & Tampilan:

PLC terintegrasi & layar sentuh

Tegangan kerja:

Cocokkan persyaratan catu daya lokal klien

Kemasan rincian:

Ekspor Packing

Menyediakan kemampuan:

5 set/bulan

Deskripsi Produk

Hot Flaming Oil Test Device IEC60950 Fire Hazard Testing Machine

Complied Standards & Clauses

The hot flaming oil test device conforms to Annex S.3 of IEC 62368-1: 2018, IEC60950-1:2005 and IEC60950-1:2013 clause 4.6.2, Annex A.3.

Equipment Structure

It is used to simulate that the flammable liquids used in electrical and electronic equipment may ignite due to overheating and leak out of the fire protection enclosure, causing electrical fires and endangering the reliable operation of the equipment and personal safety.

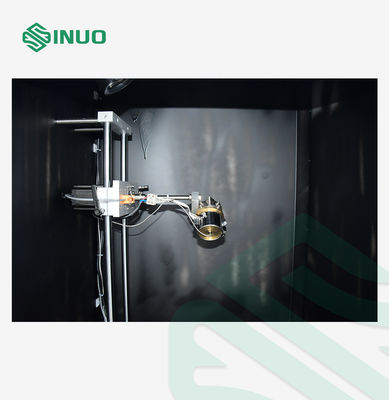

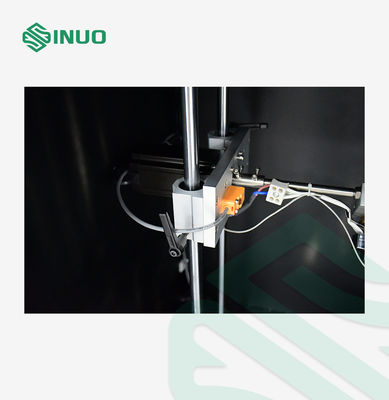

Fill 10mL of flammable liquid with the specified performance (average calorific value 38MJ/L, mass per unit volume between: 0.845g/mL～0.865g/mL, flash point: 43.5℃~93.5℃) in the metal ladle, after heating to the distillate fuel oil’s ignition point and burning 1mim, the motor drives the spoon to rotate at a certain height (100mm) and a certain flow rate (1mL/s), and then steadily pour the flammable liquid on the center of the opening of the sample (fire protection enclosure). The fire protection performance of the test product is evaluated by whether the ignition bedding at the specified distance (50mm) and with the specified density (40g/m2) under the test product is ignited.

Technical Parameters

Parameter model	SN7713A
Control & display	Integrated PLC & touch screen
Working voltage	Match client’s local power supply requirements
Test oil	Average calorific value 38MJ/L, mass per unit volume between: 0.845g/mL～0.865g/mL, flash point: 43.5℃~93.5℃
Volume of ladle	>10mL
Hot flaming oil burning time	1 min (1s~999999s can be preset)
Hot flaming oil pouring speed	1 ml/s
Hot flaming oil pouring height	100mm
Hot flaming oil pouring time	10s (1s~999999s can be preset)
Ignition bedding material	Bleached CHEESECLOTH of approximately 40 g/m2
Distance between ignition bedding material and sample	Ignition bedding material is under the sample about 50mm
Test area background color	Black
Equipment size & weight	1130mm* 600mm* 1400mm, with a vent port of ф100mm, 147KGS
