IEC 60529 IPX1–IPX4 Waterproof Test Chamber Ingress Protection Testing for Auto Parts

IEC 60529 IPX1–IPX4 Waterproof Test Chamber Ingress Protection Testing for Auto Parts

Nama merek:	Sinuo
Nomor Model:	SN4414
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	30 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Calibration Certificate (Cost Additional)

Nomor Standar Terapan:

IEC 60529

Bukaan Lubang Jarum:

Φ0.4mm

Area Tetes IPX1 & IPX2:

WD=600×600mm

Tinggi Tetesan IPX1 & IPX2:

200mm

Jarak Lubang Tetes IPX1 & IPX2:

20mm×20mm

Aliran Air IPX3 & IPX4:

IPX3：4s/siklus（2×120°）; IPX4：12 detik/siklus（2×350°）

Sudut Ayunan Tabung Berosilasi:

IPX3：120°（±60°）；IPX4：350°（±175°）

Kecepatan Ayun Tabung Berosilasi:

IPX3:4s/siklus(2×120°); IPX4:12s/siklus(2×350°)

Metode kontrol:

Plc dan layar sentuh

Catu daya:

AC380V±5%/50Hz, 15KVA

Kemasan rincian:

Kasing kayu lapis

Menyediakan kemampuan:

30 set/bulan

Deskripsi Produk

IEC 60529 IPX1–IPX4 Waterproof Test Chamber Ingress Protection Testing for Auto Parts

Complied Standards & Clauses

IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX1, IPX2, IPX3, IPX4.

Equipment Overview

Designed in strict accordance with IEC 60529:2013 standards, this IP Waterproof Test Chamber provides precise and reliable testing for IPX1 to IPX4 protection levels. It simulates real-world conditions such as dripping water, spraying, and splashing, ensuring that enclosures of electrical and electronic products, automobiles, motorcycle parts, household appliances, outdoor lighting, and signal devices meet international waterproof performance requirements.

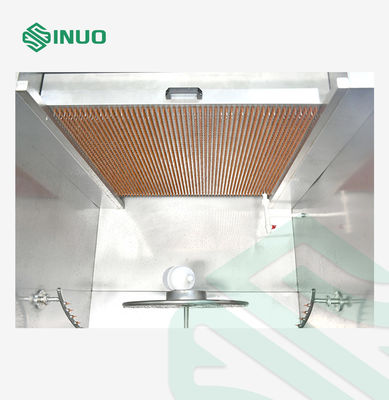

Equipped with a drip mechanism, oscillating spray system, turntable, and intelligent control cabinet, the chamber delivers uniform and repeatable test results. The turntable supports adjustable height and 15° inclination for IPX2 testing, while a built-in water filter ensures smooth operation without nozzle blockage.

With a robust chamber-type structure, stable AC380V power supply, and efficient water circulation system, this equipment is engineered for durability, accuracy, and ease of use. It is the ideal solution for manufacturers, quality control laboratories, and certification bodies seeking dependable ingress protection testing.

Technical Parameters

IPX1 & IPX2 Vertical Drip
Drip Box Position	Located at the top of the inner chamber, fixed
Needle Pinhole Aperture	Φ0.4mm
Drip Height	200mm distance of the needle to the sample is achieved by adjusting the height of the turntable or raising the specimen
Drip Speed (Water Flow)	1+0.50mm/min or 3+0.50mm/min adjustable
Drip Hole Spacing	20mmx20mm
Chamber Size	Inner size: WDH=900×900mm×1050mm Outer size: WDH=1350×1150mm×1750mm
Drip Area	WD=600×600mm, other sizes can be customized

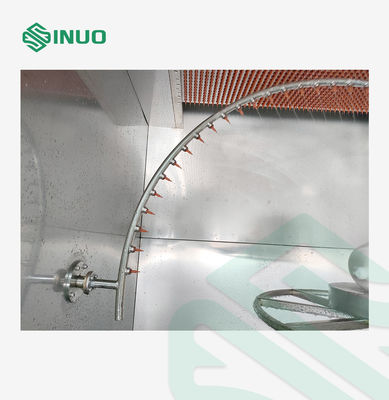

IPX3 & IPX4 Oscillating Tube
Oscillating Speed	IPX3:4s /cycle(2×120°); IPX4:12s /cycle(2×350°);
Needle Pinhole Aperture	Φ0.4mm
Oscillating Angle	IPX3:120°(±60°)； IPX4:350°(±175°)
IPX3/4 Switching	Switching by changing a certain number of blind hole needles or through-hole needles
Oscillating Tube	R400mm, R200mm is optional, made of stainless steel
Spray Holes Distribution	IPX3:over an arc of 60° either side of the center point (120°) IPX4:over the whole 180° of the semicircle Hole spacing: 50mm
Oscillating Tube Position	Located in the middle of the inner chamber, the left and right ends are fixed on the side wall of the inner chamber
General
Chamber Material	Inner chamber is made of SUS304 stainless steel
Control & Operation	PLC and touch screen intelligent control system
Test Duration	0-99.9min, can be preset
Safety Protection	Phase sequence protection, leakage protection, water shortage protection, abnormal protection
Waterproof Turntable	Diameter:Φ400mm,rotation speed: 1-5r/min, with 15° sample support block,and lifting frame 400-750mm adjustable, bearing capacity:≤50kgs

Details

IEC 60529 IPX1–IPX4 Waterproof Test Chamber Ingress Protection Testing for Auto Parts 0
