IEC 61851-23 EV Charging Station Cable Anchorage Pull Force & Torque Test Apparatus

IEC 61851-23 EV Charging Station Cable Anchorage Pull Force & Torque Test Apparatus

Nama merek:	Sinuo
Nomor Model:	SNQC1007B
MOQ:	1
harga:	Customized
Ketentuan Pembayaran:	T/t
Kemampuan Penyediaan:	20 set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate (Cost Additional)

Tarik Terapkan:

Temui 160n, 200n, 240n, 250n, spesifikasi 500N, direalisasikan dengan superposisi bobot

Torsi berlaku:

Temui 0,6N • M, 0,7N • M, 1.4N • M, 2.7N • M, 5.4N • M, 11.0N • M, 16.3N • M spesifikasi, direalisas

Roda torsi:

R100mm (ф200mm) ± 0,5mm

Frekuensi tarik:

1 waktu/s

Tarik siklus:

1-999999 siklus

Waktu aplikasi torsi:

0-99H59M59S

Mode Operasi Kontrol:

Kontrol Otomatis PLC, Operasi Layar Sentuh

Perlindungan Kegagalan Daya:

Dengan fungsi memori penyimpanan data power-off

Kemasan rincian:

Kotak kayu lapis

Menyediakan kemampuan:

20 set/bulan

Deskripsi Produk

IEC 61851-23 EV Charging Station Cable Anchorage Pull Force & Torque Test Apparatus

Complied Standards & Clauses

It is designed and manufactured according to IEC 61851-23:2023 clause 11.6.102 and Figure 110, Figure 111 and Table 114.

Product overview

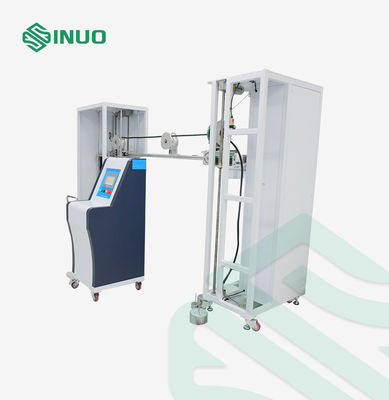

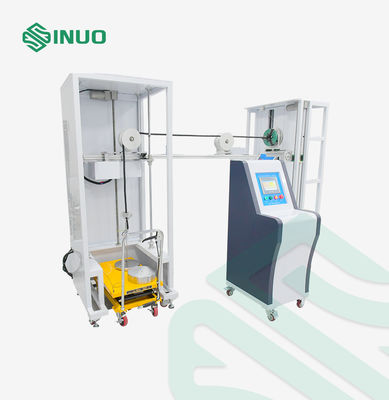

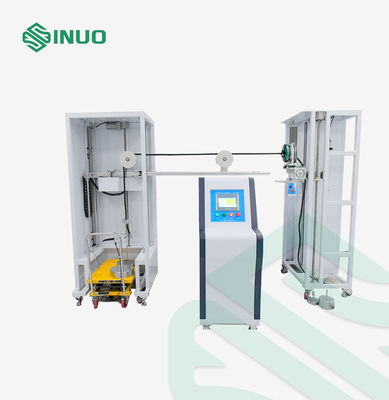

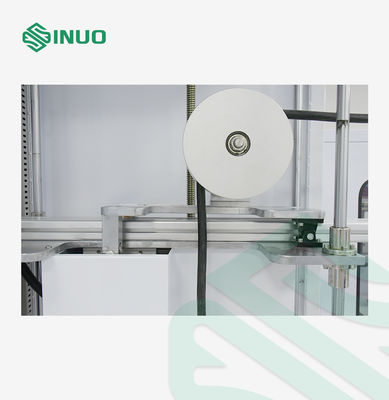

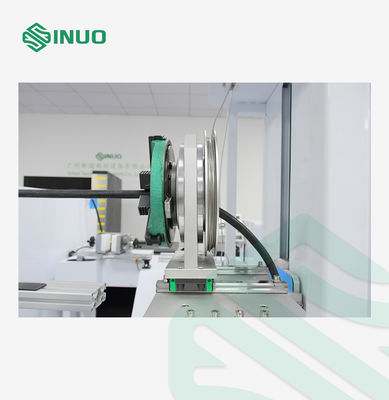

The pulling force is realized by using a motor to drive an eccentric wheel mechanism. The motor speed is adjustable to ensure that the pulling force is applied accurately each time. It is equipped with a monitoring function for the pulling force duration. Torque is applied by a motor-driven tray that lifts a weight; When the time is reached, the tray automatically resets the lifting weight and ends the application of torque.

Samples and restrictions: Electric vehicle AC and DC charging station.

The flexible cord anchorage of the appliance shall relieve conductors at the terminals from pulling force and torque. This device is used to test the ability of the cord anchorage or cable fixing device of EV AC/DC charging stations to withstand specified tensile force and torque.

Usage Environment:

Power supply: AC220V±10%/50-60Hz, 1KW; working temperature 0-40℃, humidity 30%-90%;

Dimensions: about W4000*D600*H1850mm; weight: about 300kg

Technical Parameter

Additional configuration	The equipment features an adjustable fixture height ranging from 500 to 1200 mm (i.e., the cable outlet position), allowing it to meet the testing requirements of charging stations with different cable outlet positions.
Fixture	Universal clamp, one set
Torque application time	0-99H59M59S,can be preset
Tensile frequency	1 time/s, the actual pull time is detected by electrical signal
Pull cycles	1-999999 cycles, can be preset, default is 100±1 cycles
Equipment structure schematic diagram
Power failure protection	With power-off data storage memory function
Torque wheel	R100mm(Ф200mm) ±0.5mm
Weight matching selection table
Test content	EV Charging Station Cable Pull and Torque Tests
Torque apply	Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications,realized by superposition of weights
Pull apply	Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights

Details

IEC 61851-23 EV Charging Station Cable Anchorage Pull Force & Torque Test Apparatus 2
