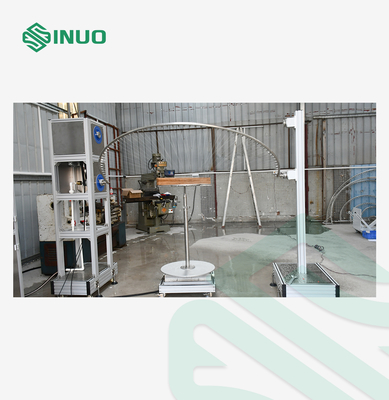

Oscillating Tube Water Spray Tester IPX3 IPX4 Waterproof Test System

Name: Oscillating Tube Water Spray Tester IPX3 IPX4 Waterproof Test System
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN444
Availability: InStock

Nama merek:	Sinuo
Nomor Model:	SN444
MOQ:	1
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 Sets Per Month

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

Calibration Certificate (Cost Additional)

Raining speed:

IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°);

Needle hole:

Φ0.4mm

Pressure gauge:

0~0.25MPa

Water flow:

0.07 L/minX

Rotation speed:

1r/min

Turntable diameter:

Φ600mm

Electrical control:

PLC & touch screen

Testing time:

1-99999S can be preset

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Deskripsi Produk

Oscillating Tube Water Spray Tester IPX3 IPX4 Waterproof Test System

Complied Standards & Clauses

The SN444 IPX3~4 Oscillating Tubes Test System is a professional-grade waterproof testing solution developed in accordance with IEC60529:2013.

Product Overview

The SN444 IPX3~4 Oscillating Tubes Test System is a professional-grade waterproof testing solution developed in accordance with IEC60529:2013. It is specifically designed for testing the IPX3 and IPX4 water ingress protection levels of electrical and electronic products.

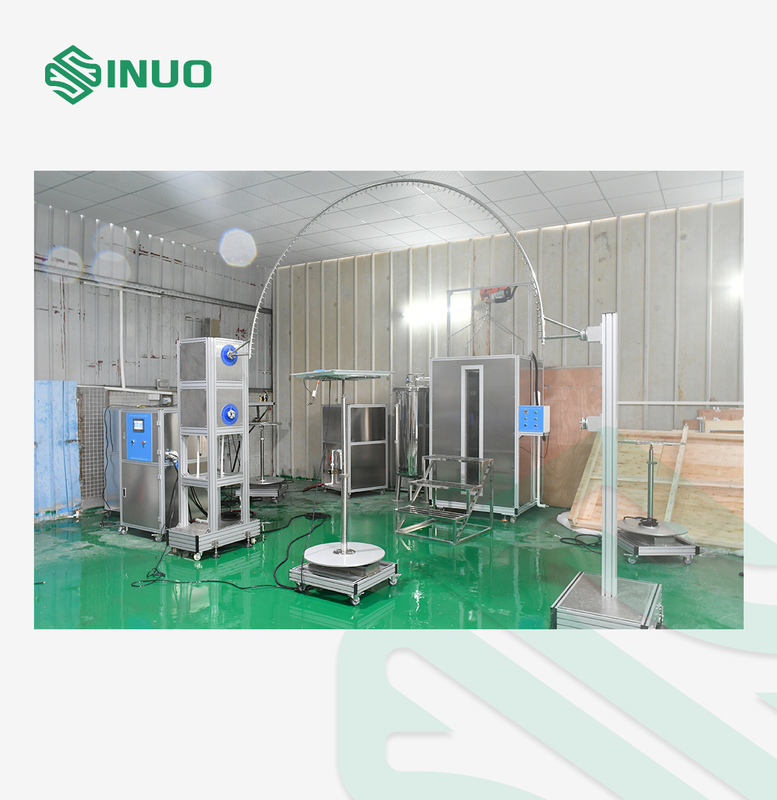

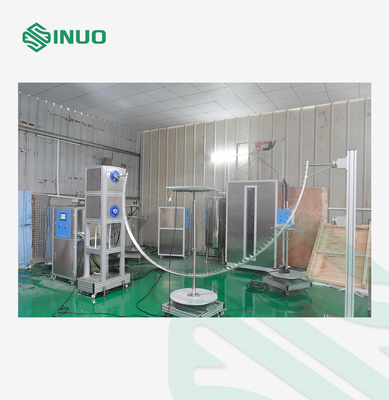

Equipped with a wide range of oscillating tubes (R200mm to R1600mm), a precision turntable, and a smart water supply control cabinet powered by PLC and touch screen interface, this system enables accurate, programmable, and repeatable waterproof testing. The adjustable swing angle, precise flow control, and customizable testing durations ensure full compliance with international standards.
This is an ideal testing solution for manufacturers of electrical appliances, automotive parts, outdoor electronics, lighting, and other IP-rated products seeking to verify waterproof protection through rigorous and automated testing processes.

Technical Parameters

No.	Item	Specification
1	Water Supply	Flow rate >10L/min ±5%, clean filtered water

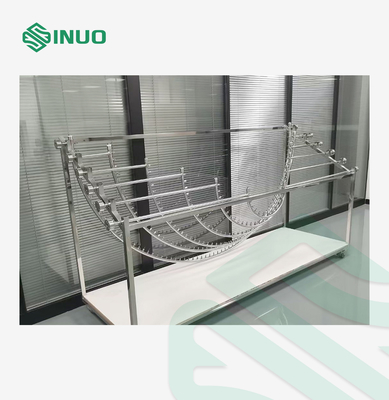

2	Oscillating Tube Sizes	R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm (Stainless Steel)
3	Needle Hole Diameter	Φ0.4mm
4	Included Angle of Holes	IPX3: 120°, IPX4: 180°

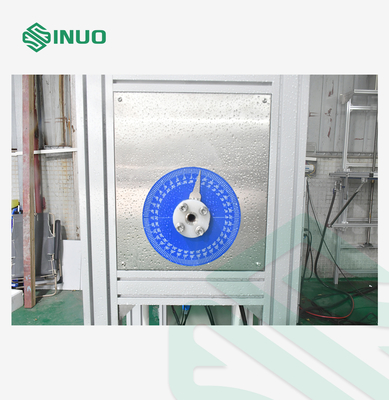

5	Swing Angle of Tube	Max. ±175° (preset), compliant with IPX3/4 swing standards
6	Raining Speed	IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°)
7	Water Flow Per Hole	Adjustable (0.07 L/min × per hole)
8	Test Time	Programmable from 1 to 99999 seconds
9	Pressure Gauge	0~0.25 MPa
10	Turntable	Φ600mm, 1 r/min, load capacity ≤50 kg
11	Installation Site Requirements	Flat ground, lighting, drainage, waterproof socket, ground installation
12	Control System	PLC + Touch screen control
13	Power Supply (Machine)	AC 380V, 50Hz, 4kW
14	Power Supply (Test Sample)	AC 220V, 10A
