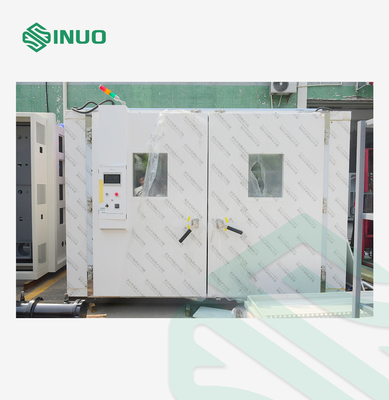

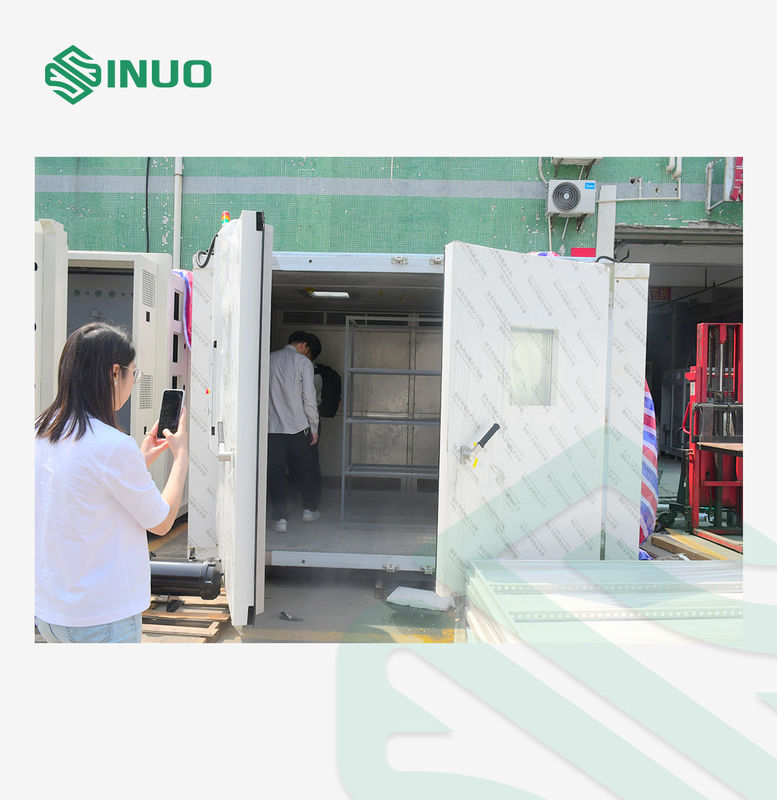

Explosion-proof Walk-In High and Low Temperature Humidity Test Chamber

Explosion-proof Walk-In High and Low Temperature Humidity Test Chamber

Nama merek:	Sinuo
Nomor Model:	SN886-8.36m³
MOQ:	1
Ketentuan Pembayaran:	T/T
Kemampuan Penyediaan:	10 Sets Per Month

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

Calibration Certificate (Cost Additional)

Inner box dimensions:

W1900×H2200×D2200 mm

External dimensions Approx.:

W2300×H2500×D3500 mm

Temperature range:

-40℃～+120℃

Effective volume:

8.36m³

Humidity range:

20%〜98%RH

Humidity fluctuation:

±2.5%RH

Temperature rise time:

+20℃→+80℃ ≤3℃/min Load: 4KW battery module

Temperature drop time:

+20℃→-40℃ ≤1℃/min Load: 4KW battery module

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Deskripsi Produk

Explosion-proof Walk-In High and Low Temperature Humidity Test Chamber

Complied Standards & Clauses

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Product Overview

Sample restrictions:

Testing and storing samples of flammable, explosive, and volatile substances

Testing and storing samples of corrosive substances

Testing or storing biological samples

Testing and storing samples of strong electromagnetic radiation sources

Volume, dimensions and weight:

Nominal internal volume ≈ 8.36m³

Inner box dimensions = W1900×H2200×D2200 mm

External dimensions = W2300×H2500×D3500 mm

Weight approximately 2200kg

Test environment conditions:

Ambient temperature is 5～35℃, relative humidity ≤ 85%RH, air pressure (86～106)kPa

No specimen in the test chamber

Technical Parameters

Effective volume	8.36m³
Inner box size	W1900×H2200×D2200 mm
Outer box size	W2300×H2500×D3500 mm
Temperature range	-40℃～+120℃
Temperature fluctuation	≤±0.5℃, expressed as GB/T5170-2008
Temperature deviation	±2.0℃
Temperature uniformity	≤2.0℃
Temperature rise time	+20℃→+80℃ ≤3℃/min Load: 4KW battery module
Temperature drop time	+20℃→-40℃ ≤1℃/min Load: 4KW battery module
Humidity range	20～98%RH (temperature 20℃～85℃) (no active heat load)
Relative humidity deviation	±3%RH (＞75%RH no-load) ±5%RH (≤75%RH no-load)
Humidity fluctuation	±2.5%RH
Noise	≤75dB

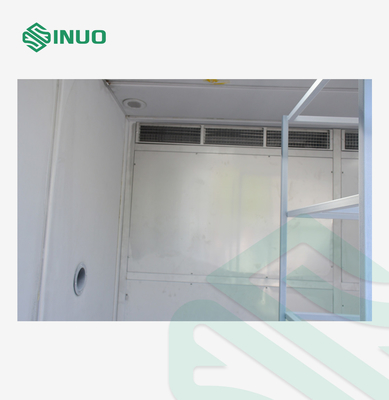

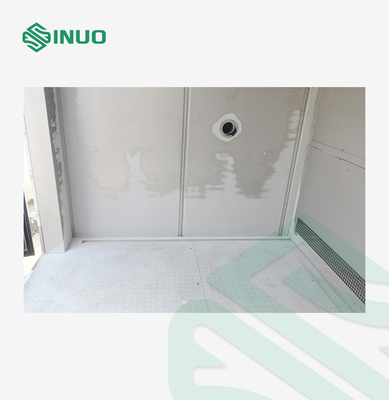

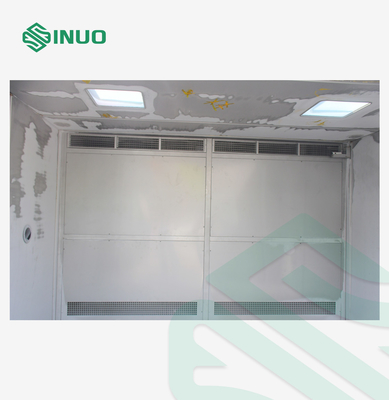

Insulation enclosure structure	Spray-coated galvanized color steel plate--temperature stress resistant insulation material--SUS304 stainless steel plate composite assembly plate. Among them: Spray-coated galvanized color steel plate (external) thickness 0.8mm, color is standard warehouse gray. SUS304 stainless steel plate (inner) thickness 1.0 mm. The bottom plate uses 2.0mm embossed anti-skid plate. The thickness of the temperature stress resistant insulation material layer: 100mm. The load-bearing capacity of the test room floor: 600kg/m2 (uniform load)
